Kubi to HPL Modular Partitions for Offices

Collection

Kubi

Partition walls and cabins in HPL

Modular systems for public spaces

Cabins and partition walls made of high-pressure laminate HPL

The Kubi collection offers self-supporting modular systems in HPL for the construction of shower stalls, toilets, and partition walls units—both wall-mounted and floor-standing—designed to withstand high-humidity environments and frequent use. The high-pressure laminate structural panels ensure excellent abrasion resistance, absolute dimensional stability, and non-porous surfaces suitable for intensive cleaning and disinfection. An engineered solution for the architecture of public spaces, where rigorous hygiene, extreme durability, and functionality are essential requirements.

Intended uses

Public restrooms
Stations and transport infrastructure
Airports
Healthcare and hospital facilities
School environments
Swimming pools and sports centers
Changing rooms
High-traffic offices
Supermarkets and commercial spaces

BENEFITS
High resistance to moisture, abrasion and chemical agents
Non-porous surfaces, suitable for frequent cleaning and sanitization
Structural stability and durability even under heavy use conditions

001K partition walls HPL

Description
A partition system made of HPL high-pressure plastic laminate panels.
The panels are resistant to water, humidity, steam, and aggressive chemical agents, and are available in various finishes and colors.
The structure with stainless steel components guarantees stability, ease of cleaning, and long-term reliability in heavy-use environments.

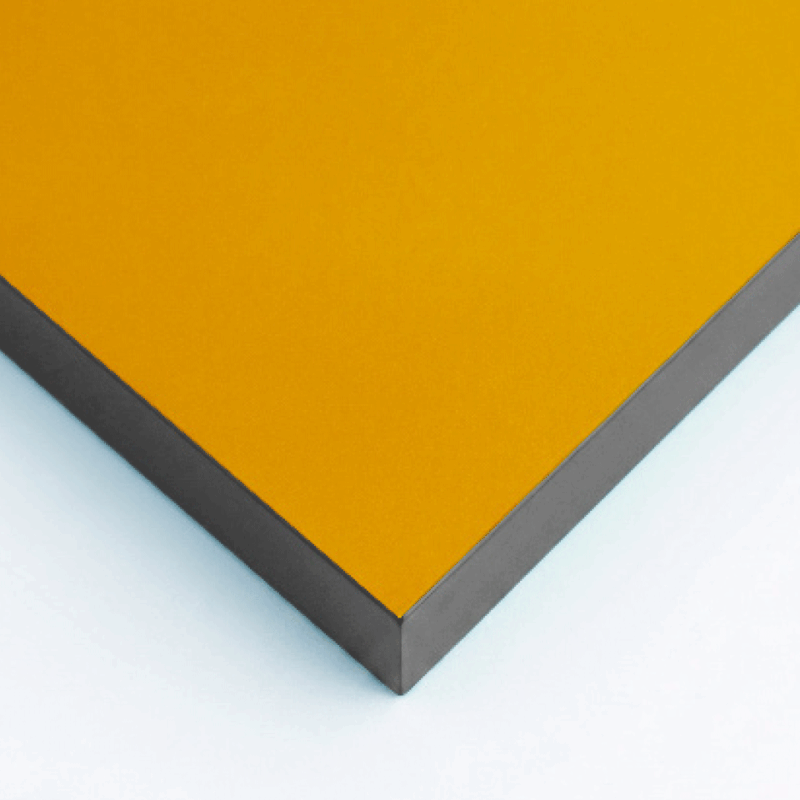

Leaf HPL

13/14 mm thickness constituting the body
main component of partition walls.
These panels are made of a material
high-pressure laminate.

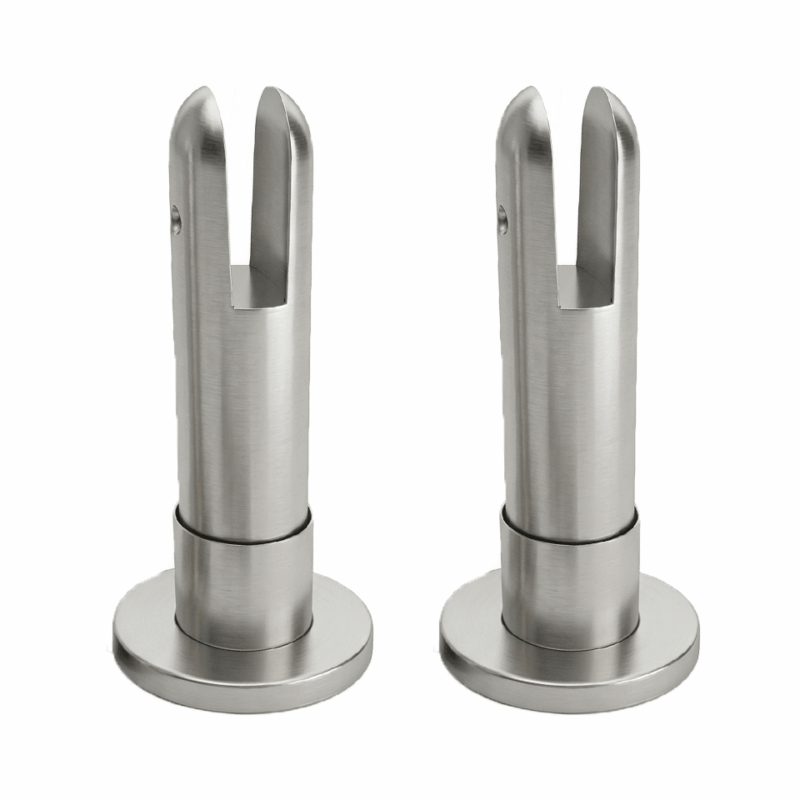

Feet

Stainless steel, which support the walls and keep them firmly anchored to the floor.

Hinges

Stainless steel, which connect the panels together and allow them to be opened and closed.

Profile
Upper, which runs along the upper part of the
walls and provides support for the panels in HPL.

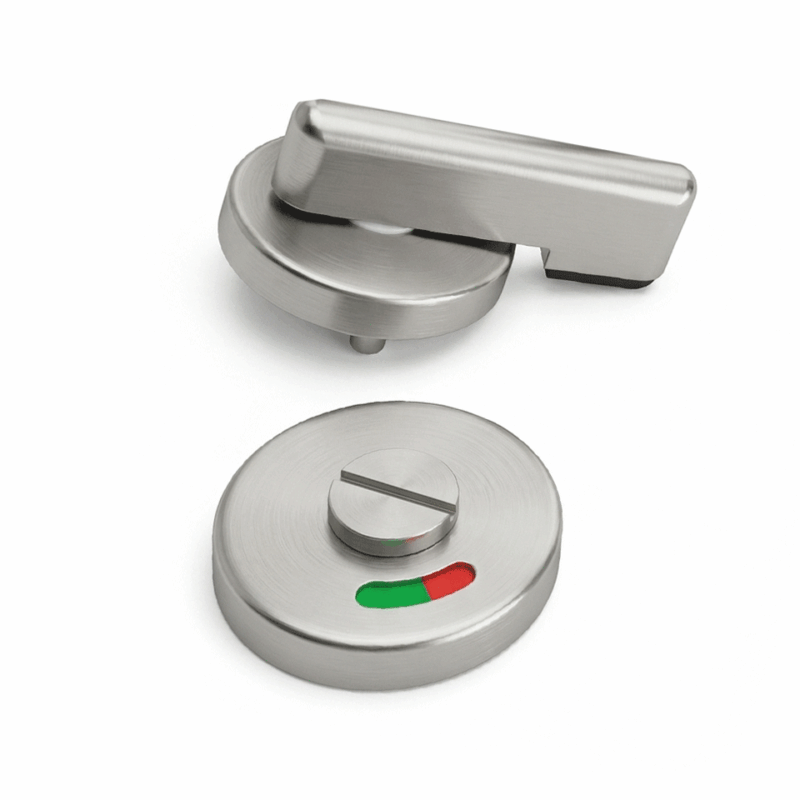

Locks

Stainless steel with a vacant/engaged indicator, which allows doors to be locked and shows whether the stall is occupied or vacant.

Note

The HPL panels are certified in accordance with EN 438-2 for mechanical and surface properties, chemical resistance, and dimensional stability, and in accordance with EN 1186 for hygienic properties.

Certifications
FIP solutions are designed to address specific technical challenges.
For this reason, we invite you to select the certified configuration that best suits your needs

Flame-retardant (Class 1 (upon request)
