HPL Plastic Laminate
High-strength technical doors
Maximum hygiene and durability
Designed for heavy-duty environments
HPL plastic laminate doors offer a versatile and durable solution, specifically designed for high-traffic environments where high standards of hygiene are required. Thanks to the combination of a honeycomb core panel and a high-pressure laminate finish, this collection features compact, non-porous surfaces that are easy to sanitize. The technical construction ensures complete protection against impacts, scratches, and abrasions, providing long-lasting resistance to chemical cleaners and daily wear and tear.
Intended uses
Healthcare facilities
Community Houses and Hospitals
Clinics
Nursing homes
Sports facilities
Swimming pool
Sports centers
Showers
Changing rooms
Community areas
Schools and nurseries
Public buildings
Public establishments
Restaurant industry
Restaurants
People
Professional environments and productive
Industry
Laboratories
Offices
Accommodation facilities
Residence
Wellness centers
BENEFITS
High surface resistance for high-stress environments
Ease of maintenance and cleaning in high hygiene requirement environments
Design Versatility with Diverse frame Solutions
Heavy-duty resistant surfaces

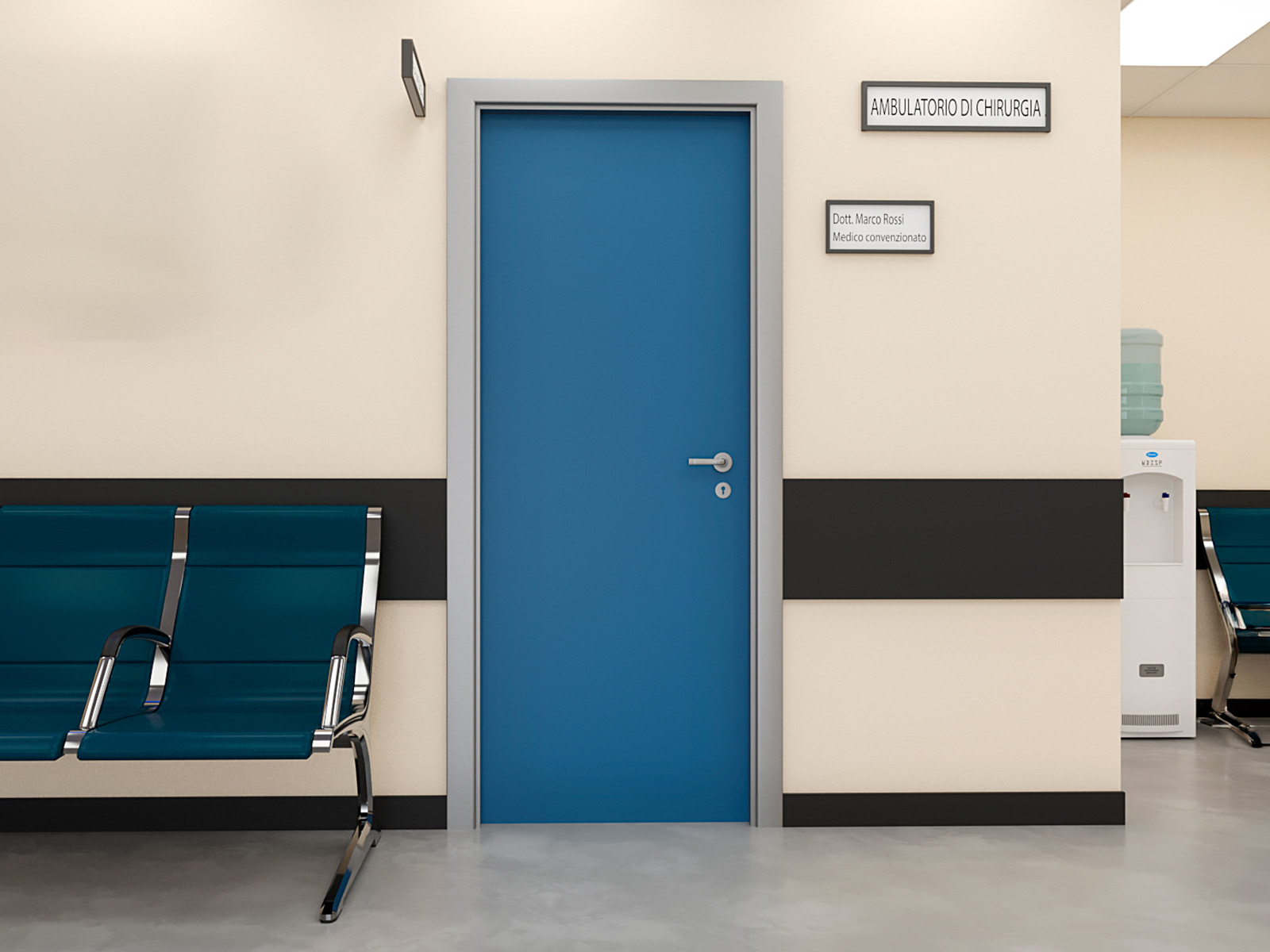

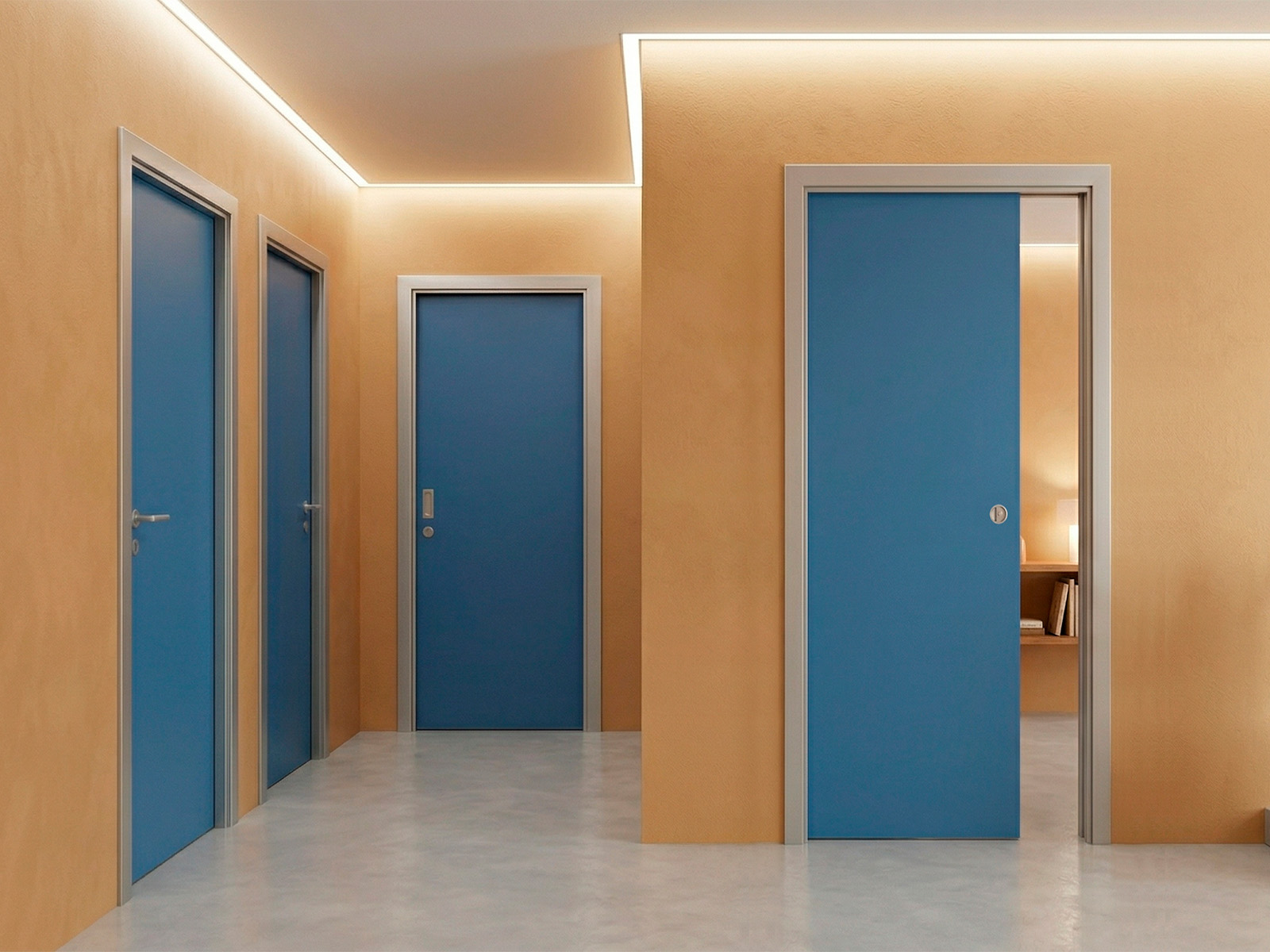

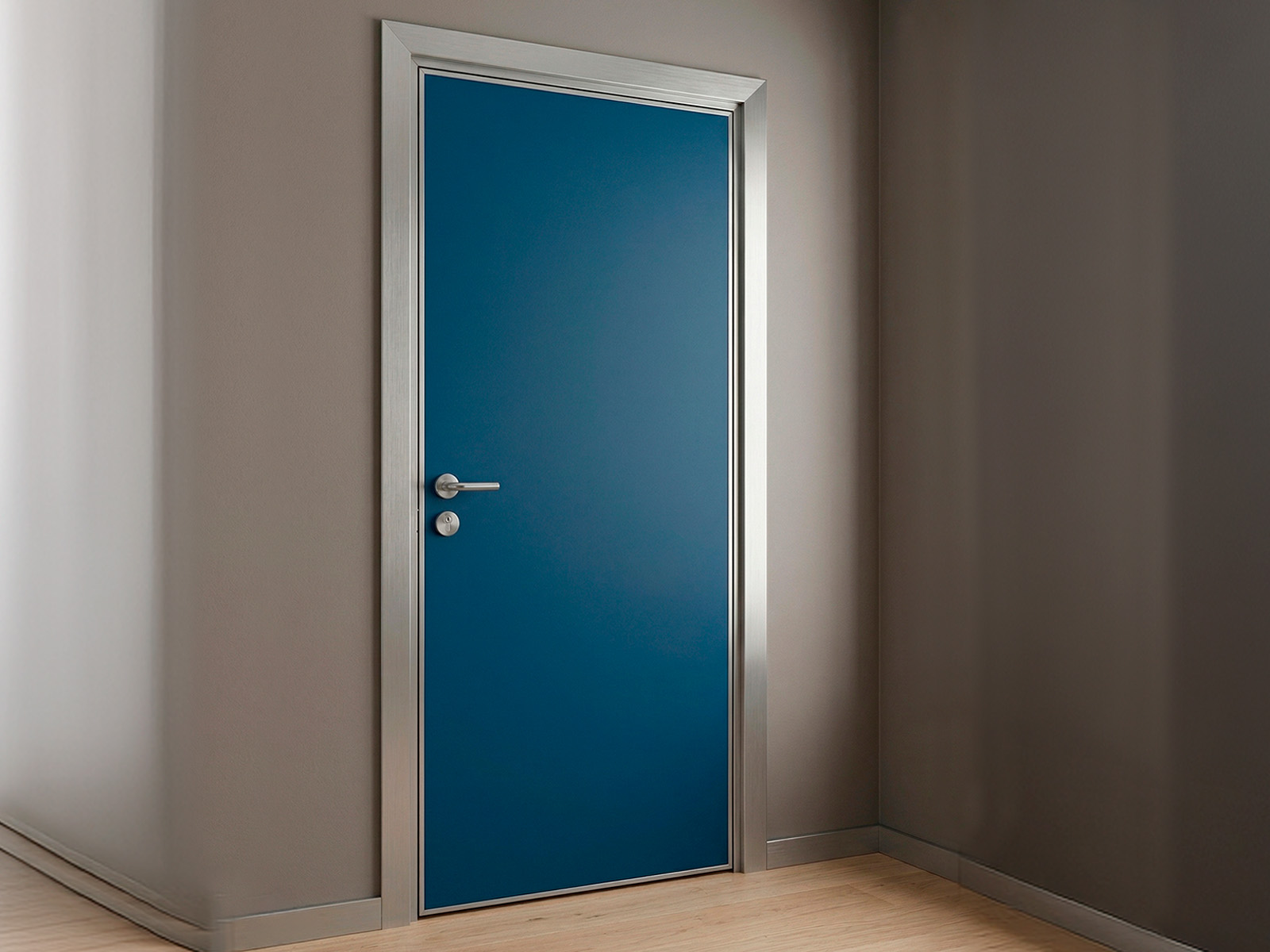

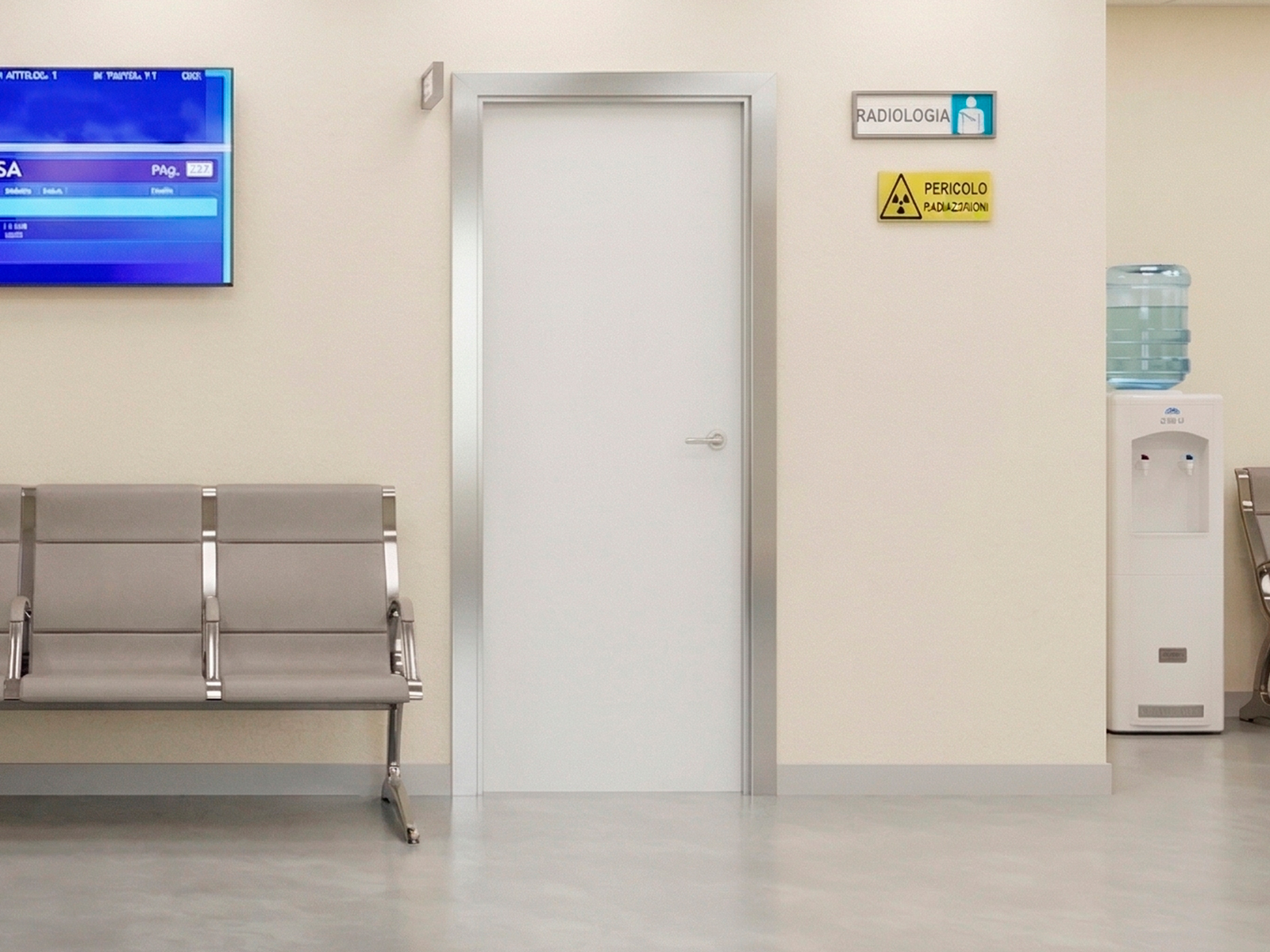

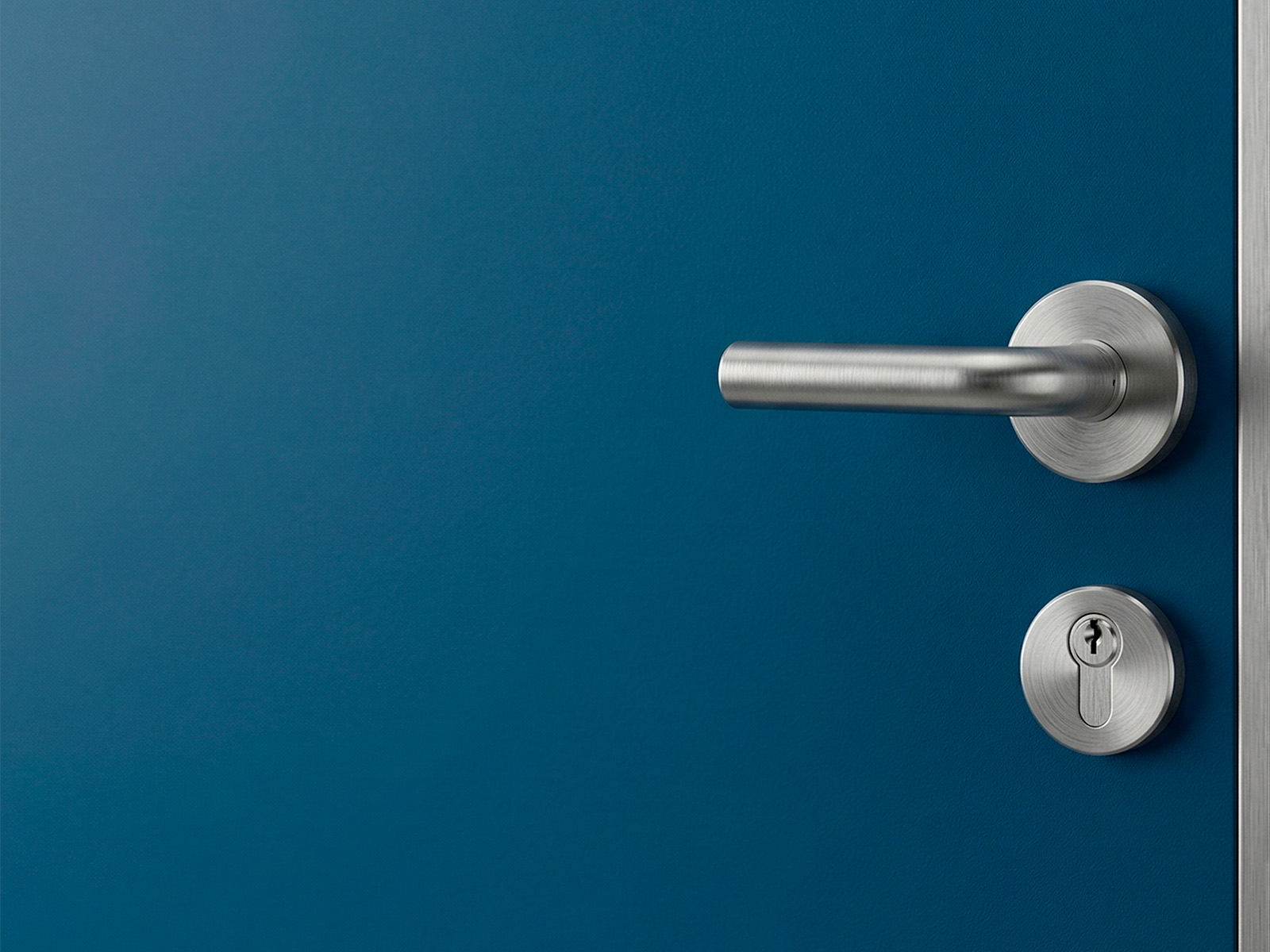

201L+114ALL Plastic Laminate Door with Frame Aluminum
Description
Door with a hollow-core panel covered in HPL and frame laminate, supported by extruded aluminum.
The linear frame configuration allows for seamless integration into masonry and ensures strength, lightness, and precision during installation.
The laminate surface ensures resistance to impacts, scratches, and abrasions, maintaining hygienic properties and ease of cleaning over time.
Leaf
Material
Hollow-core panel with HPL laminate finish.
Surface
Closed-cell non-porous, resistant to impacts and scratches
and abrasions.
Chemical resistance
To common solvents, household detergents, disinfectants
hospital-grade, washable with boiling water or steam.
Additional properties
Color fastness to light, antistatic properties against
traditional nobilities.
Thickness leaf
44–45 mm
Certification
Manufactured in accordance with UNI-EN 438-1 standards.
Frame and Insignia
Material
Extruded aluminum, 15/10 thickness alloy
Structure
Telescopic interlocking between the profiles and the architraves.
Assembly
Mullions and transoms joined by corner brackets in
aluminum.
Type
Extruded aluminum telescopic poles.
Border Leaf
Upon request
Aluminum alloy
Locks
Standard
Magnetic Patent Lock
Upon request

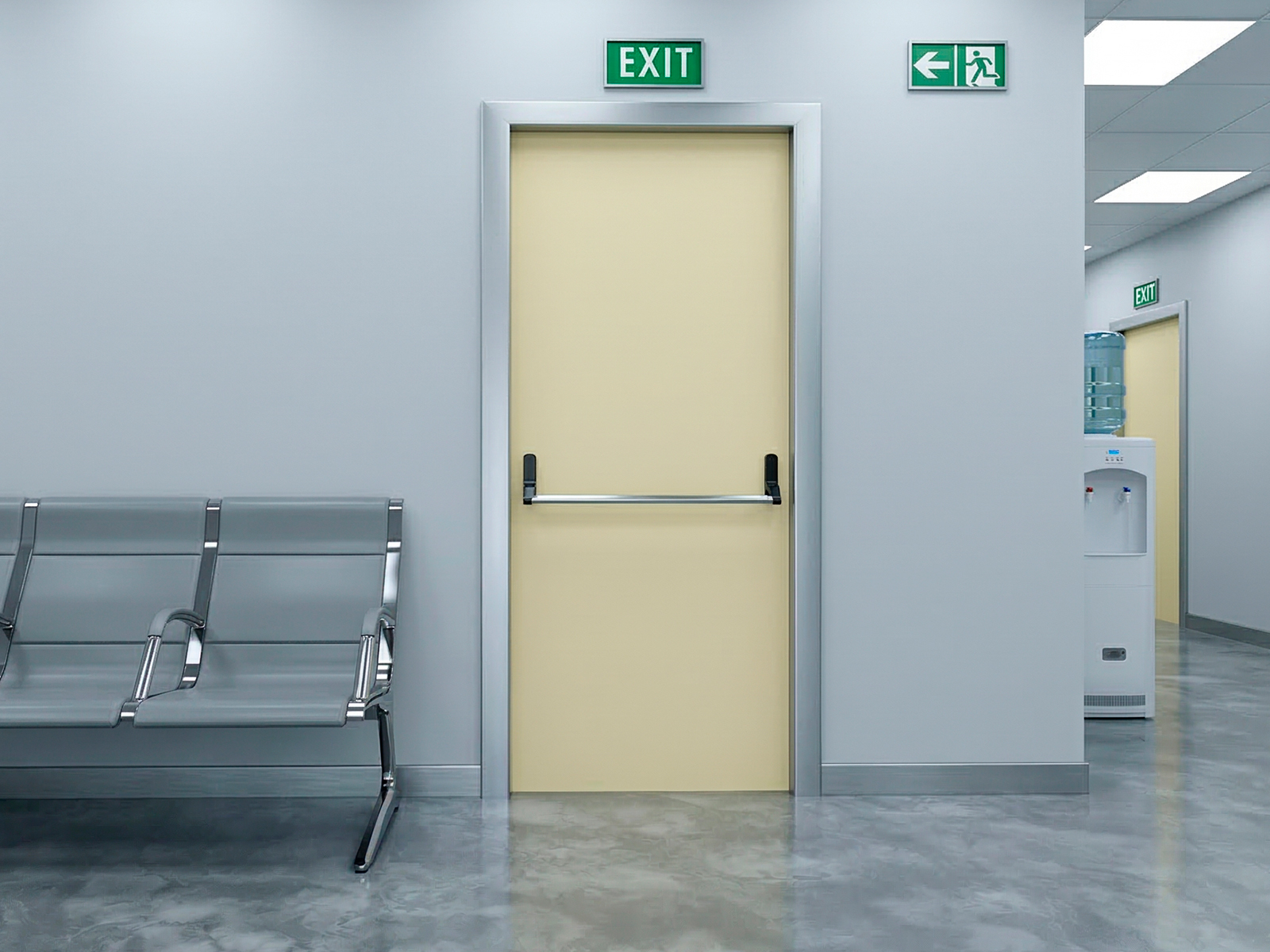

Lock with Yale cylinder or Vacant/Occupied (WC) or for panic exit device
Gasket
Rubber compliant with UNI 9122 standards.
Hinges

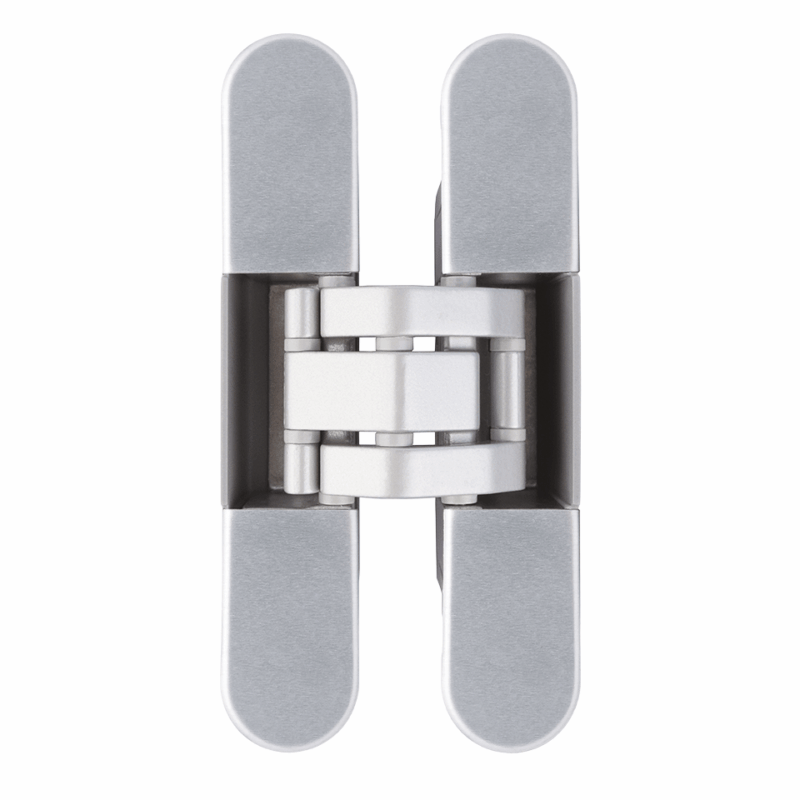

Concealed hinges, adjustable in 3 axes.
Internal structure
Honeycomb, available in wood or with upon request
perforated particle board.
Ventilation grille (on request)
Material
Aluminum
Certifications
FIP solutions are designed to address specific technical challenges.
For this reason, we invite you to select the certified configuration that best suits your needs.
Flame-retardant (Class 1 (upon request)
Heavy-duty resistant surfaces

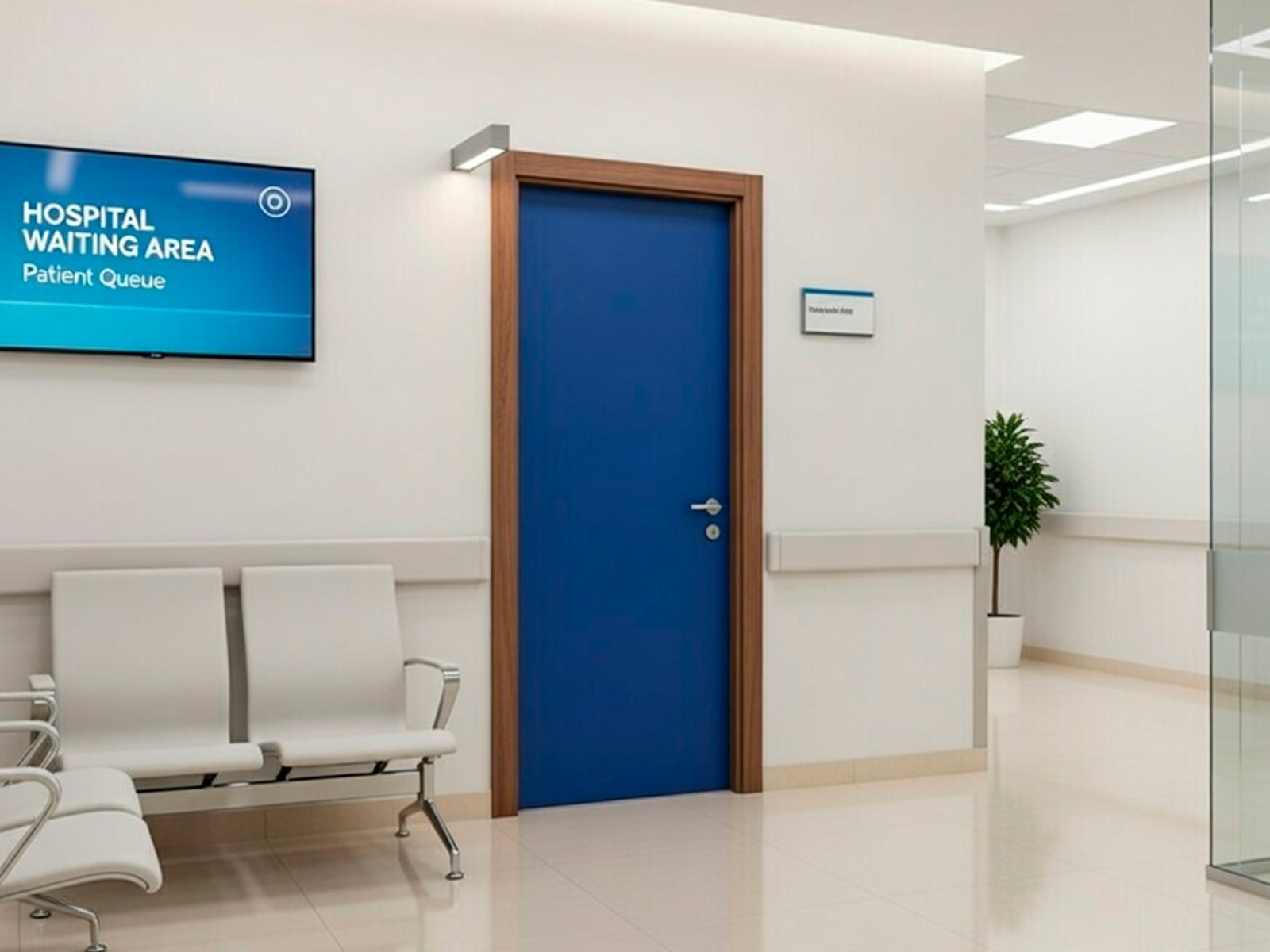

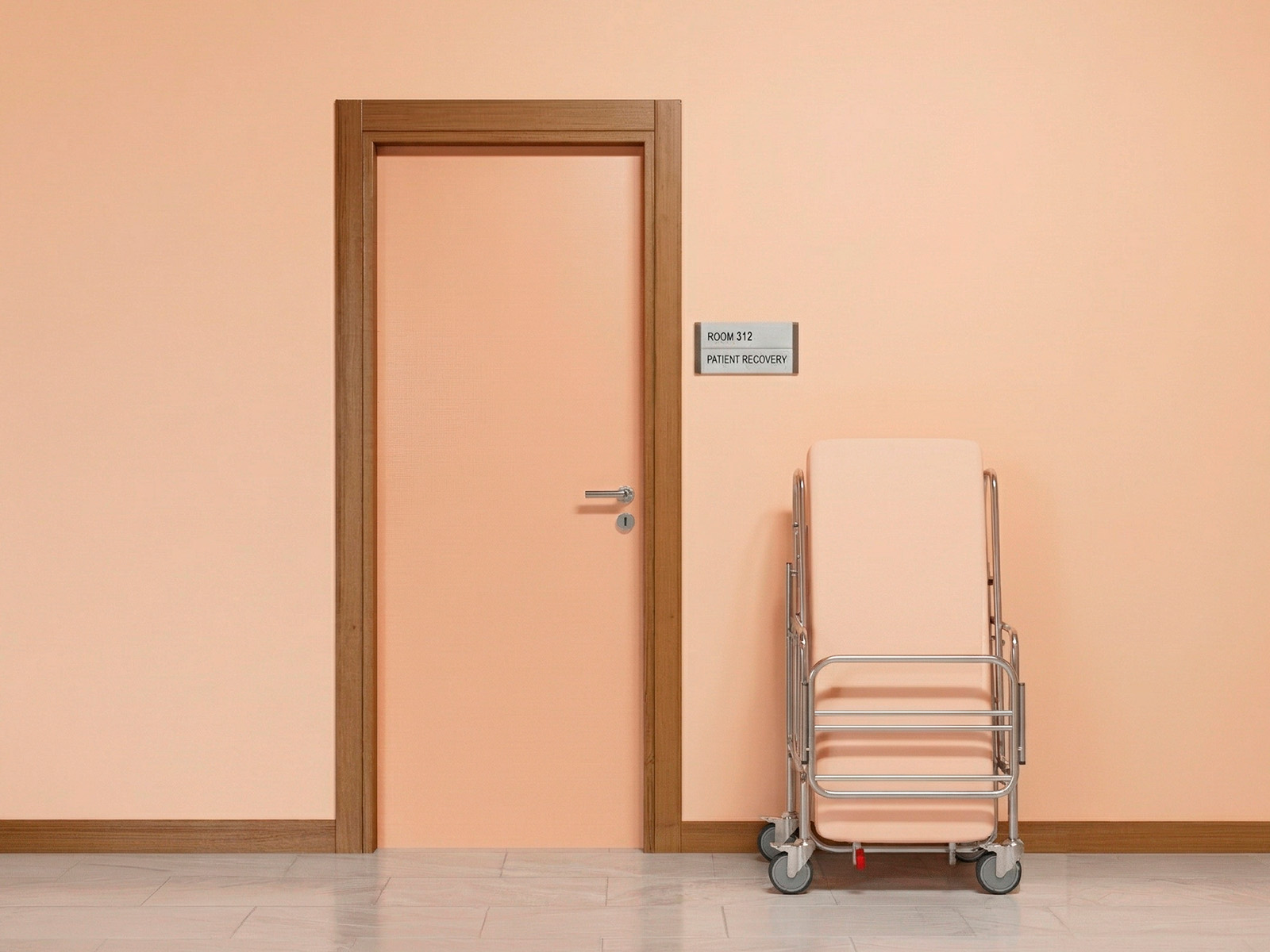

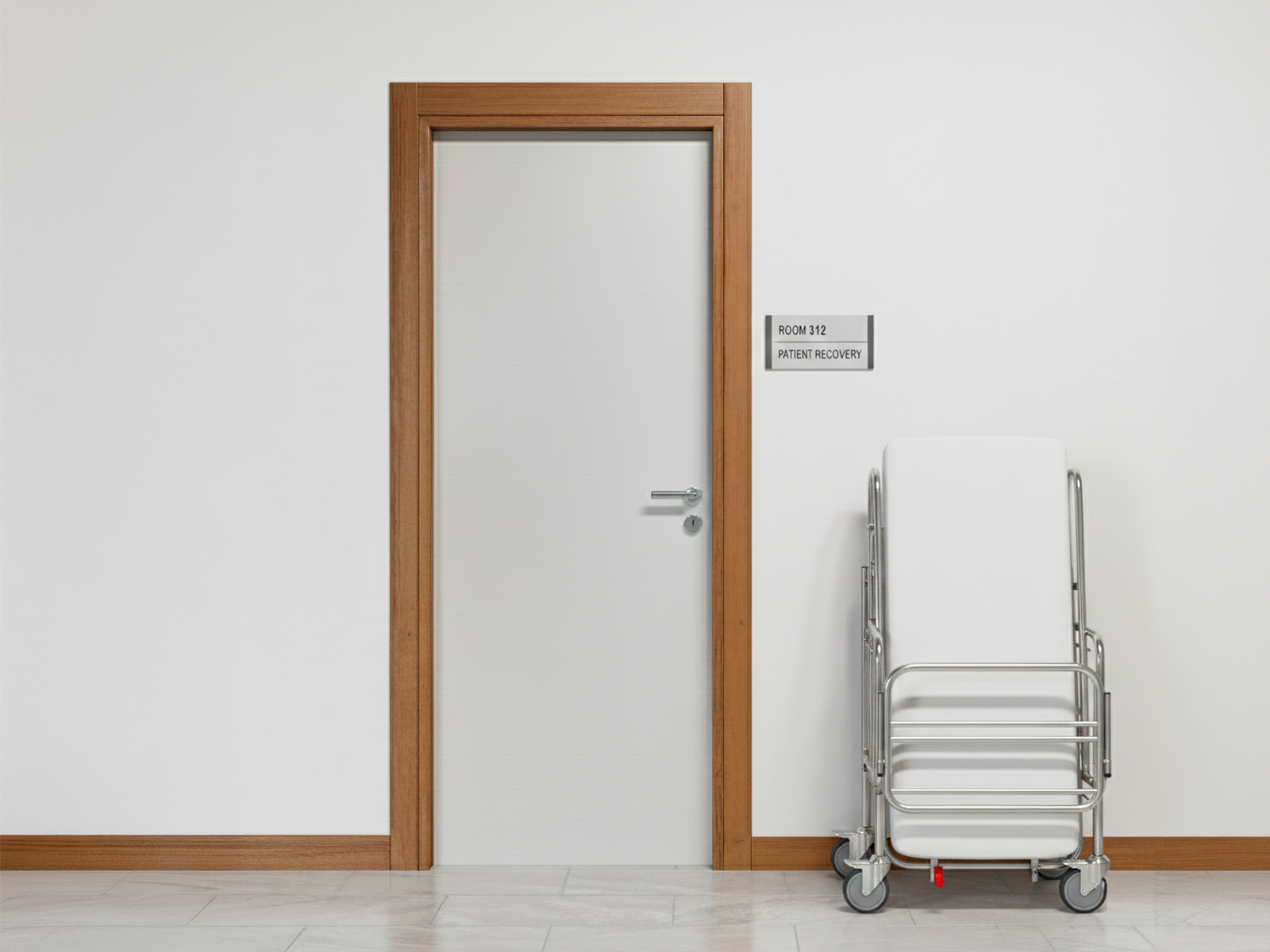

201L Plastic Laminate Door with Frame Wood
Description
Door with a hollow-core panel covered in HPL and frame laminate, with a solid wood frame.
The frame, with a solid spruce body, ensures high mechanical strength, elasticity, and long-term stability; it is coated with water-repellent HDF for greater protection against moisture and a precise finish during processing.
The laminate surface ensures resistance to impacts, scratches, and abrasions, maintaining hygienic characteristics and easy cleaning even in heavy-use environments.
Leaf
Material
Hollow-core panel with HPL laminate finish.
Surface
Non-porous, closed-cell, resistant to impact, scratches, and abrasions.
Chemical resistance
Resistant to common solvents, household detergents, hospital disinfectants; washable with boiling water or steam.
Additional properties
Light fastness, antistatic properties compared to traditional melamine-faced panels.
Thickness leaf
44–45 mm
Certification
Manufactured in accordance with UNI-EN 438-1 standards.
Fire retardant certification
First class on request.

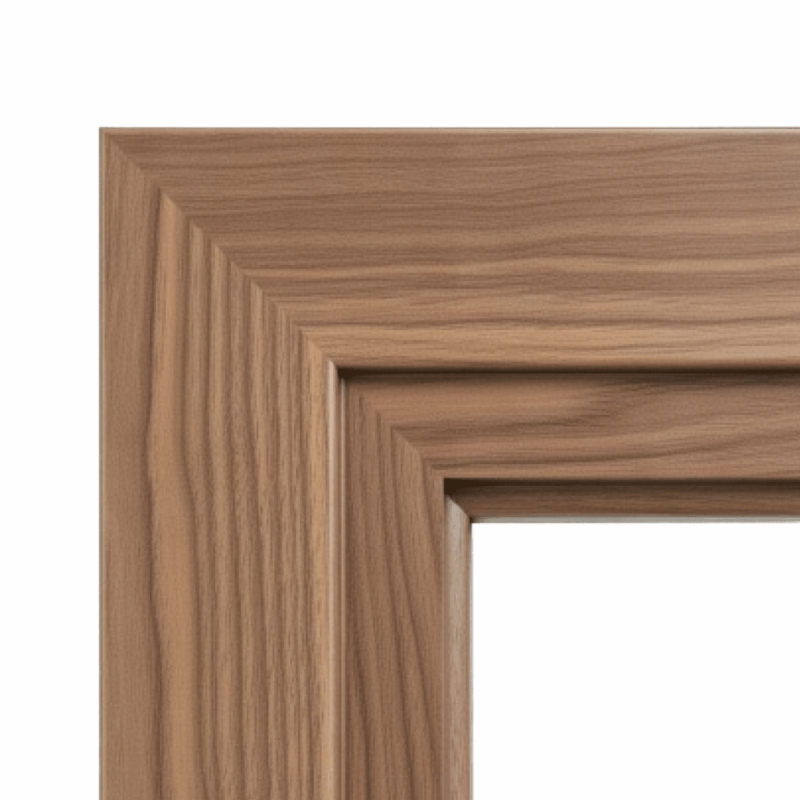

Frame and Insignia
Type
Solid fir body, offering high mechanical strength, elasticity, and the natural flexibility of wood.
Material
Frame coated with a special 3-mm water-repellent HDF for maximum protection against moisture and maximum precision in trimming.
Mostrine
Type
Made with folding technique for the folding of
fins, which guarantee very high mechanical resistance at the most critical points.
Materials
Made with special water-repellent HDF fabric to ensure perfection and
moisture resistance.
Lock
Standard
Patent lock
Upon request
Lock with Yale cylinder or Vacant/Occupied (WC).
Gasket
Rubber compliant with UNI 9122 standards.
Hinges
Tropicalized steel lift-off hinge type.
Concealed hinges can be installed upon request
adjustable on three axes.
Internal structure
Upon request Honeycomb, available in wood or with pre-drilled chipboard upon request (solid wood).
Ventilation grille (on request)
Certifications
FIP solutions are designed to address specific technical challenges.
For this reason, we invite you to select the certified configuration that best suits your needs
Hermetic
Flame-retardant (Class 1 (upon request)
+ Fire resistance
EI 30 | EI 45 | EI 60
