X-ray shielding doors for radiation protection
Safety and shielding continuity
Lead-lined doors and protection systems for radiological rooms
The RX collection includes shielded doors, glazed windows, and movable partitions specifically designed to guarantee maximum radiation protection in radiological rooms, laboratories, and diagnostic environments. All products are manufactured with an integrated lead sheet and high-resistance structures, ensuring total shielding continuity, long-term durability, and ease of maintenance. These technical solutions allow for optimal integration with walls, subframes, and existing spaces, ensuring maximum installation precision, certified safety, and secure visual control during the activation of X-ray equipment.
Intended uses
Healthcare facilities
X-ray rooms
Diagnostic rooms
Dental practices
Laboratories
Research laboratories
with radioactive sources
NDT Industrial Departments
Professional environments
Command executes
Shielded observation rooms
Veterinary studies
BENEFITS
Integrated lead sheet for maximum protection
Maximum installation precision on existing walls and subframes
Sturdy structures with simplified maintenance
Optimal visibility during the use of X-ray equipment
Integrated radiation protection

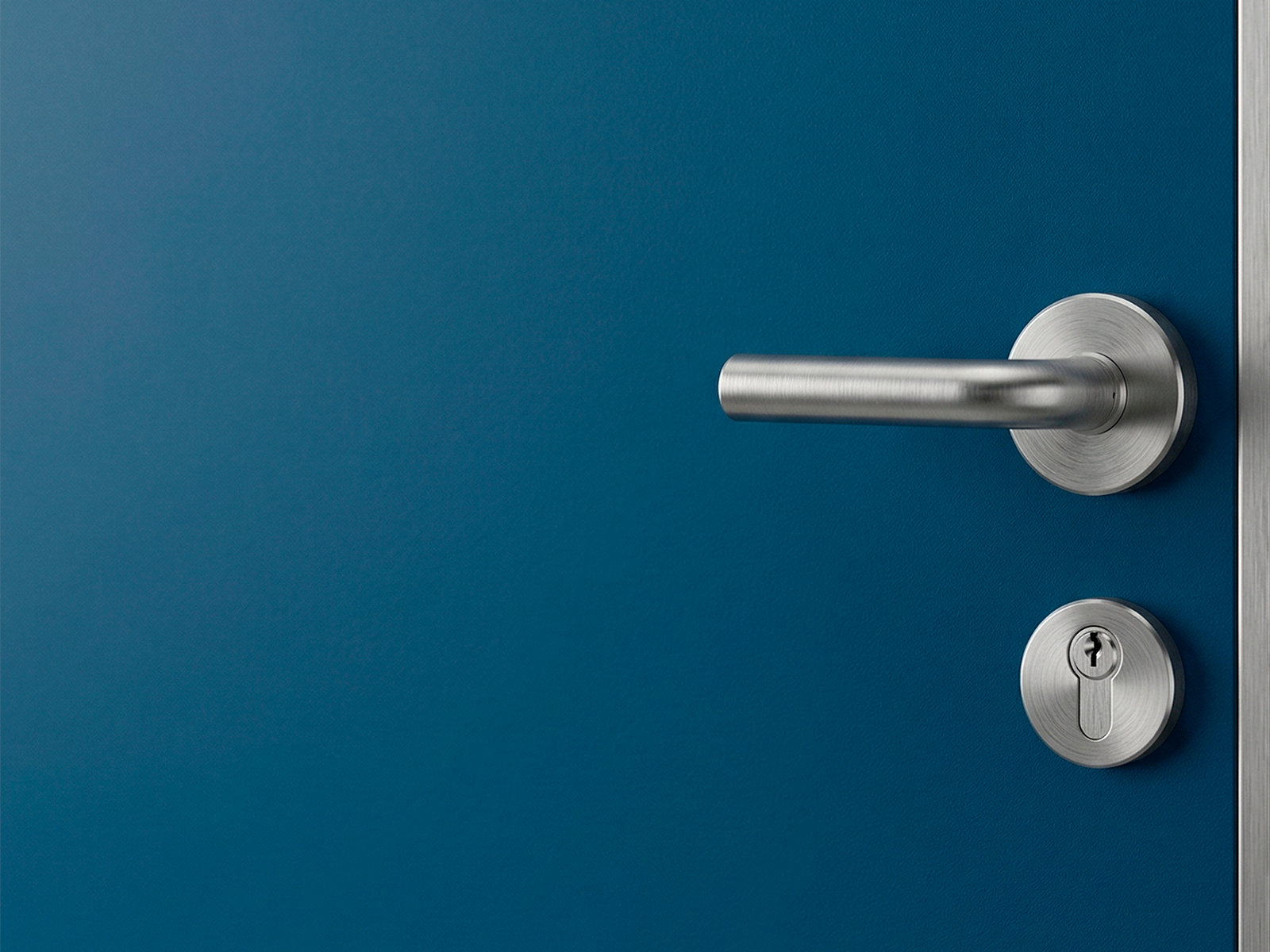

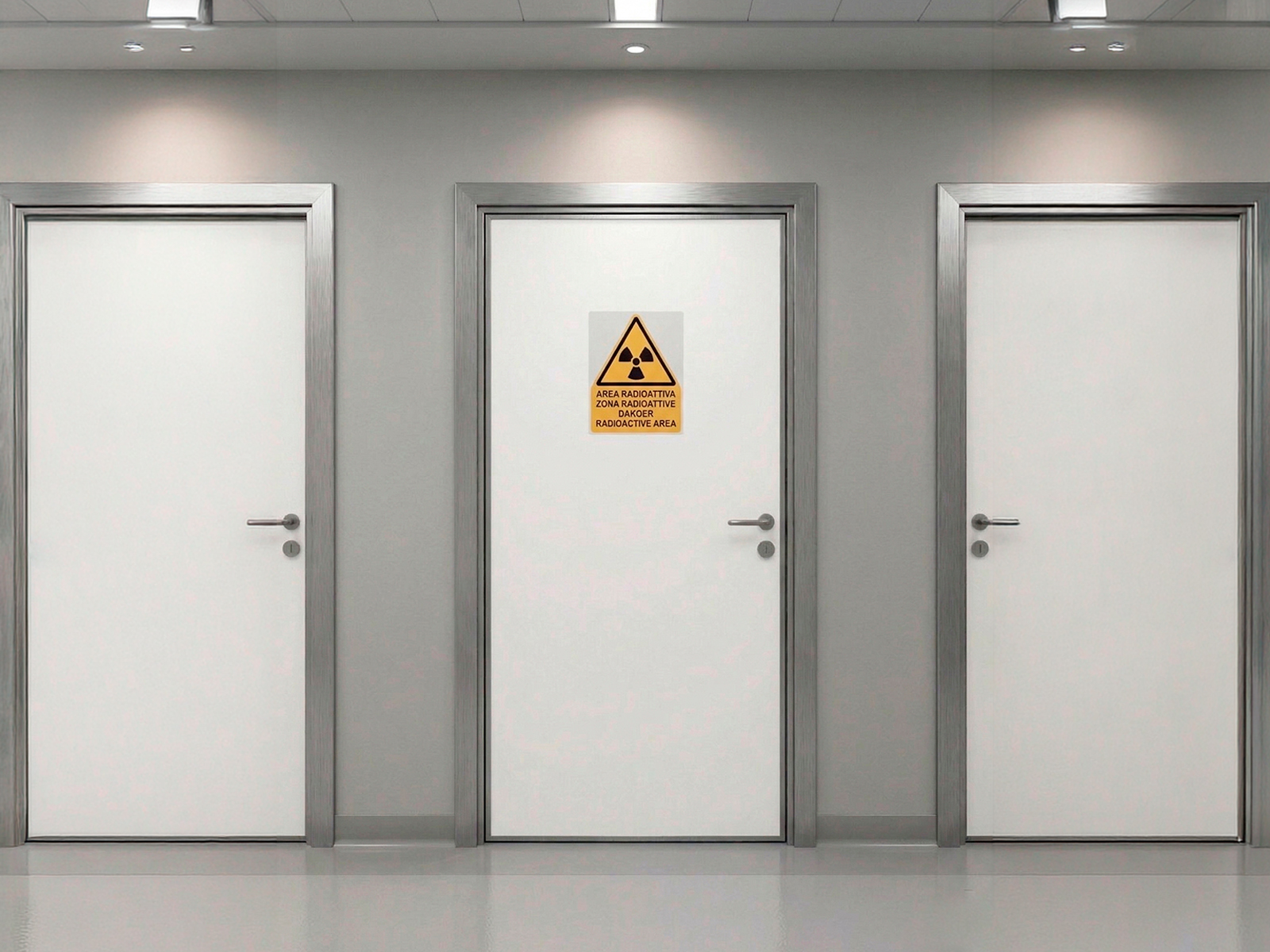

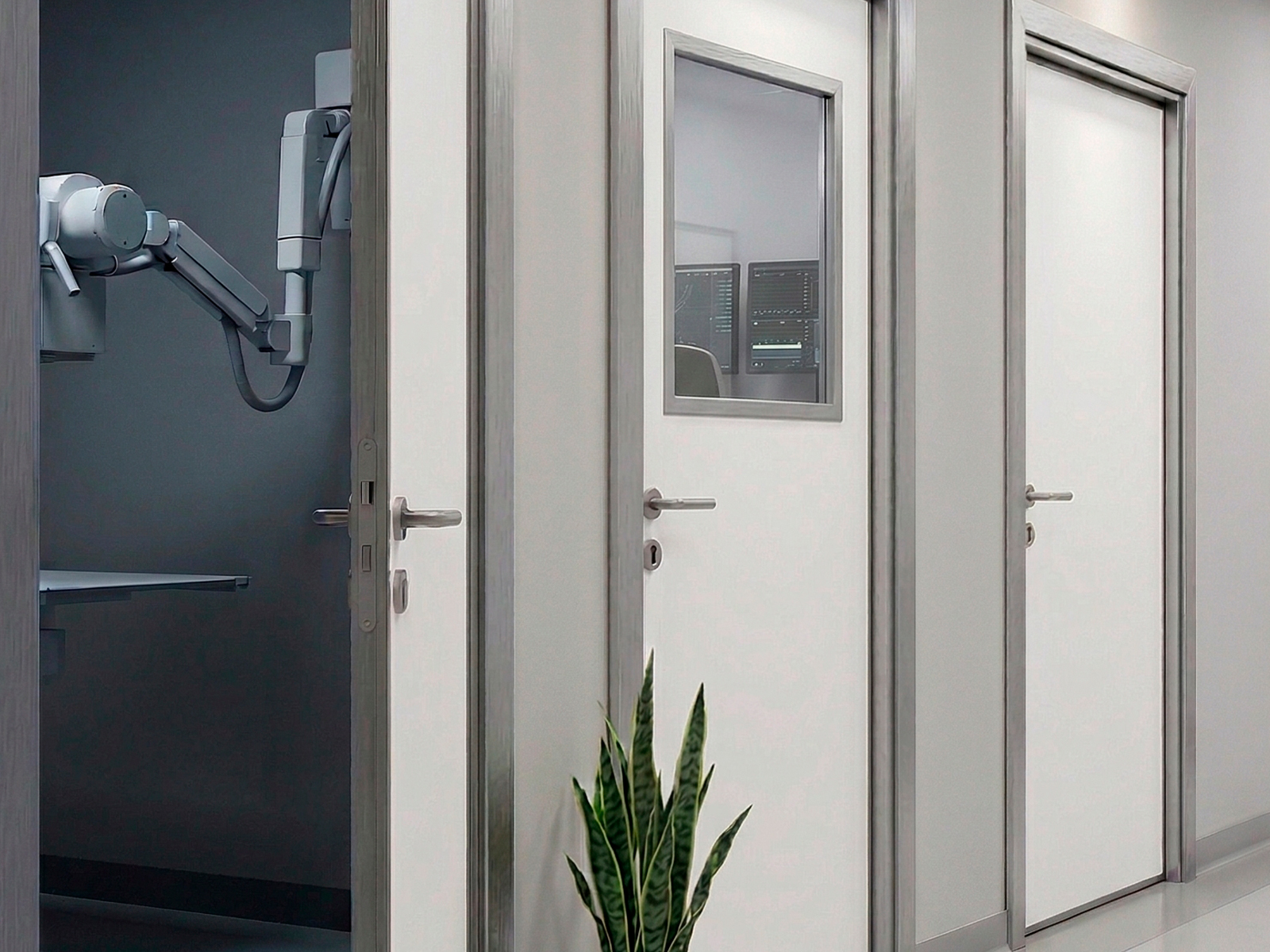

201L+114ALL+193P Sealed Anti-X Door with Frame Aluminum
Description
Door with a hollow-core panel shielded with a lead foil and frame made of extruded aluminum.
The aluminum frame, which incorporates shielding, ensures precise installation, structural stability, and continuous radiation protection.
The HPL laminate finish ensures resistance to impacts, scratches, and abrasions, as well as a hygienic surface that is easy to sanitize.
Leaf
Material
Hollow-core structure with a frame perimeter frame made of kiln-dried fir; intermediate layer of lead foil (1 to 3 mm); surface finish with 2 layers of high-density laminate
white (or other color upon request).
Surface
Coatings with 2 layers of high-density laminate of
white color (or other finishes upon request).
Additional properties
Structure consisting of 6 total layers; presence of lock reinforcements on both sides, also further coated in lead to ensure the continuity of the shielding.
Thickness leaf
45 mm
Lead
compliant slab pure aluminum UNI 6450-69 99,9% material with normal radiometric value according to Legislative Decree No. 230 of 03/17/1995. Available in 1 mm, 2 mm, 3 mm.
Frame and Insignia
Material
Extruded alloy aluminum (15/10 thickness); lead foil coating (thickness from 1 to 3 mm, depending on
upon request).
Structure
Telescopic interlocking system between the profiles and the architraves.
Assembly
Mullions and transoms joined by means of aluminum corner brackets.
Border Leaf
Upon request
Aluminum alloy
Locks
Standard
Patent lock
Upon request
Lock with Yale cylinder or Vacant/Occupied (WC).
Gasket
Rubber compliant with UNI 9122 standards.
Hinges
Three-way adjustable concealed hinges
Visual
Upon request
An anti-X-ray shield can be installed
Certifications
FIP solutions are designed to address specific technical challenges.
For this reason, we invite you to select the certified configuration that best suits your needs
+ Lead inside
Flame-retardant (Class 1 (upon request)
Integrated radiation protection

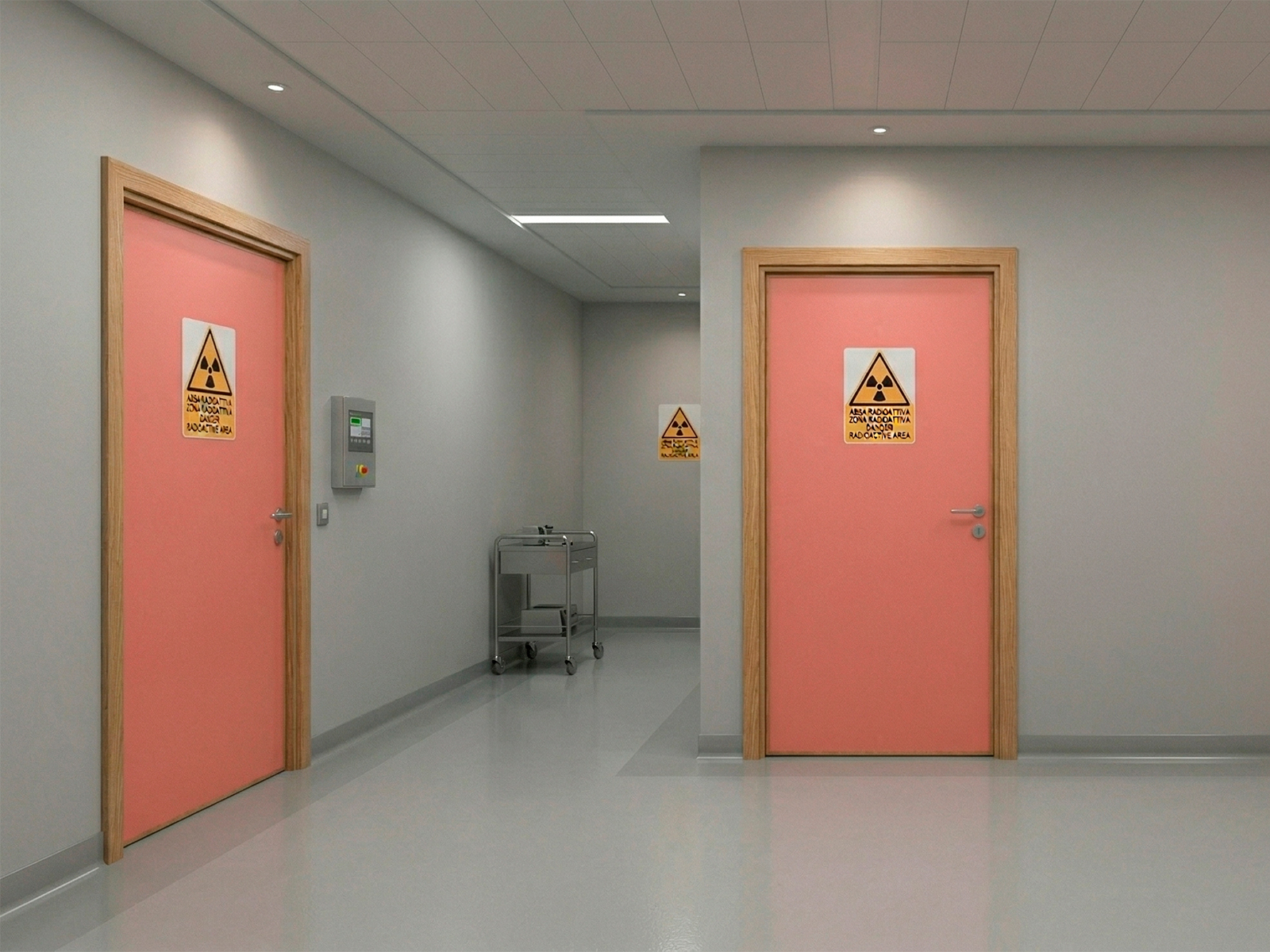

201L+193P Anti-X Sealed Door with Frame Wood
Description
Door with a honeycomb core panel shielded with lead foil and frame wood.
The frame, made of solid wood and incorporating lead sheeting on the stipes and moldings, ensures continuous shielding and proper integration with the masonry.
The HPL laminate finish ensures resistance to impacts, scratches, and abrasions, as well as a hygienic surface that is easy to sanitize.
Leaf
Material
Hollow-core structure with a frame wooden perimeter frame
of dried abete; intermediate layer in lead foil (1 to 3 mm);
coating with 2 layers of high-density laminate
white (or other color upon request).
Surface
Coatings with 2 layers of high-density laminate
white in color (or other finishes upon request).
Additional properties
Structure composed of 6 layers in total; presence
of lock reinforcements on both sides, as well
further coated in lead to ensure
shielding continuity.
Thickness leaf
45 mm
Lead
compliant slab pure aluminum UNI 6450-69 99,9% material with normal radiometric value according to Legislative Decree No. 230 of 03/17/1995. Available in 1 mm, 2 mm, 3 mm.
Frame
Type
Solid fir body, offering high mechanical strength, elasticity, and the natural flexibility of wood.
Material
Frame to HDF, 3 mm water-repellent with a coating of
Lead.
Mostrine
Type
Made with a folding technique for the flap bends, which guarantees very high mechanical strength
at the most critical points.
Materials
Made of special water-repellent HDF material to ensure perfection and moisture resistance, with a lead coating.
Border Leaf
Upon request
Aluminum alloy
Locks
Standard
Patent lock
Upon request
Lock with Yale cylinder or Vacant/Occupied (WC).
Gasket
Rubber compliant with UNI 9122 standards.
Hinges
Tropicalized steel lift-off hinge type.
Concealed hinges can be installed upon request
adjustable on three axes.
Visual
Upon request
Upon request, an Anti-X 2.0 viewing screen can be included
mm Pb; dim. 60×80 cm or 30×40 cm.
Certifications
FIP solutions are designed to address specific technical challenges.
For this reason, we invite you to select the certified configuration that best suits your needs
+ Lead inside
Flame-retardant (Class 1 (upon request)
+ Soundproofed
Integrated radiation protection

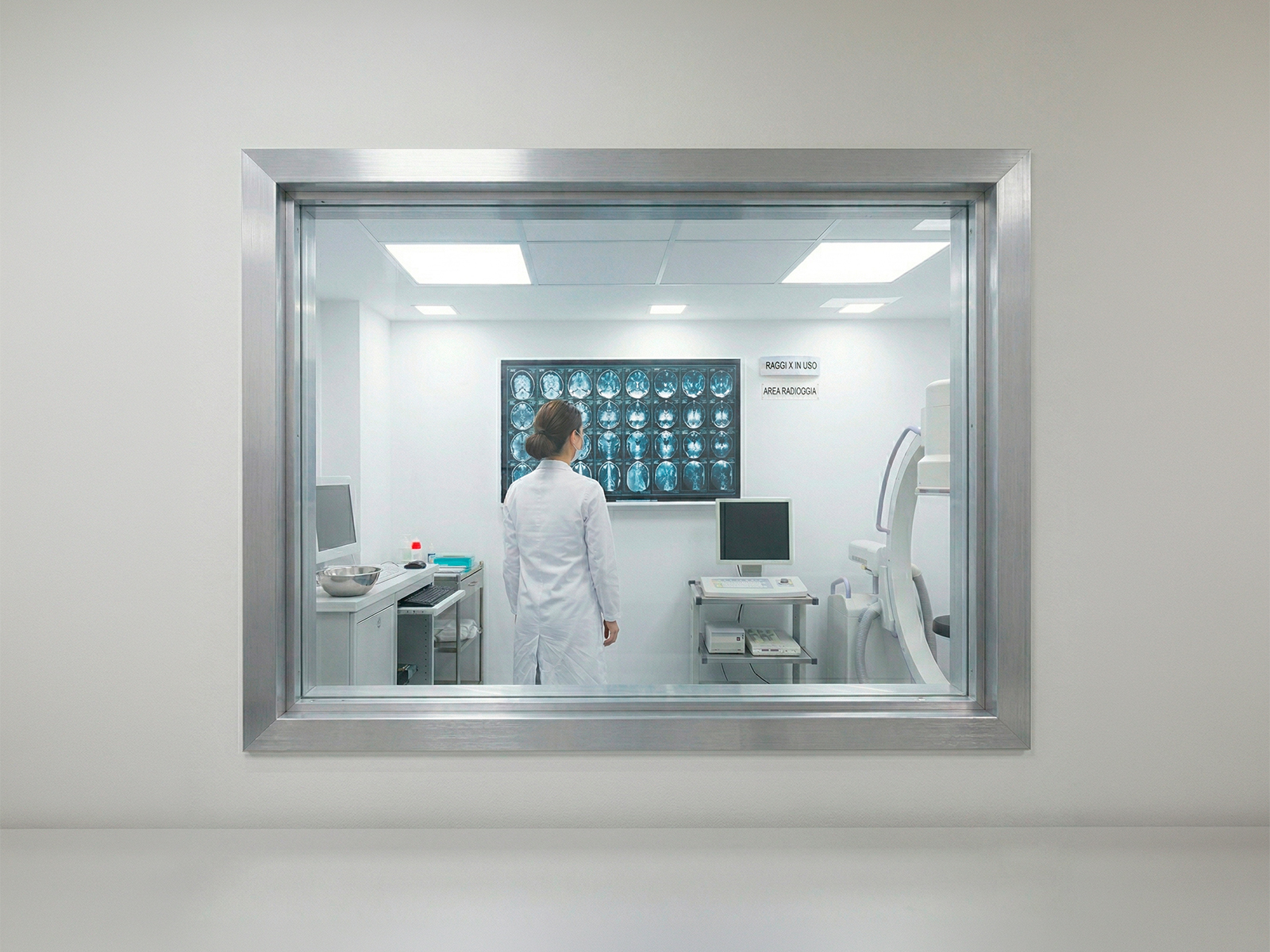

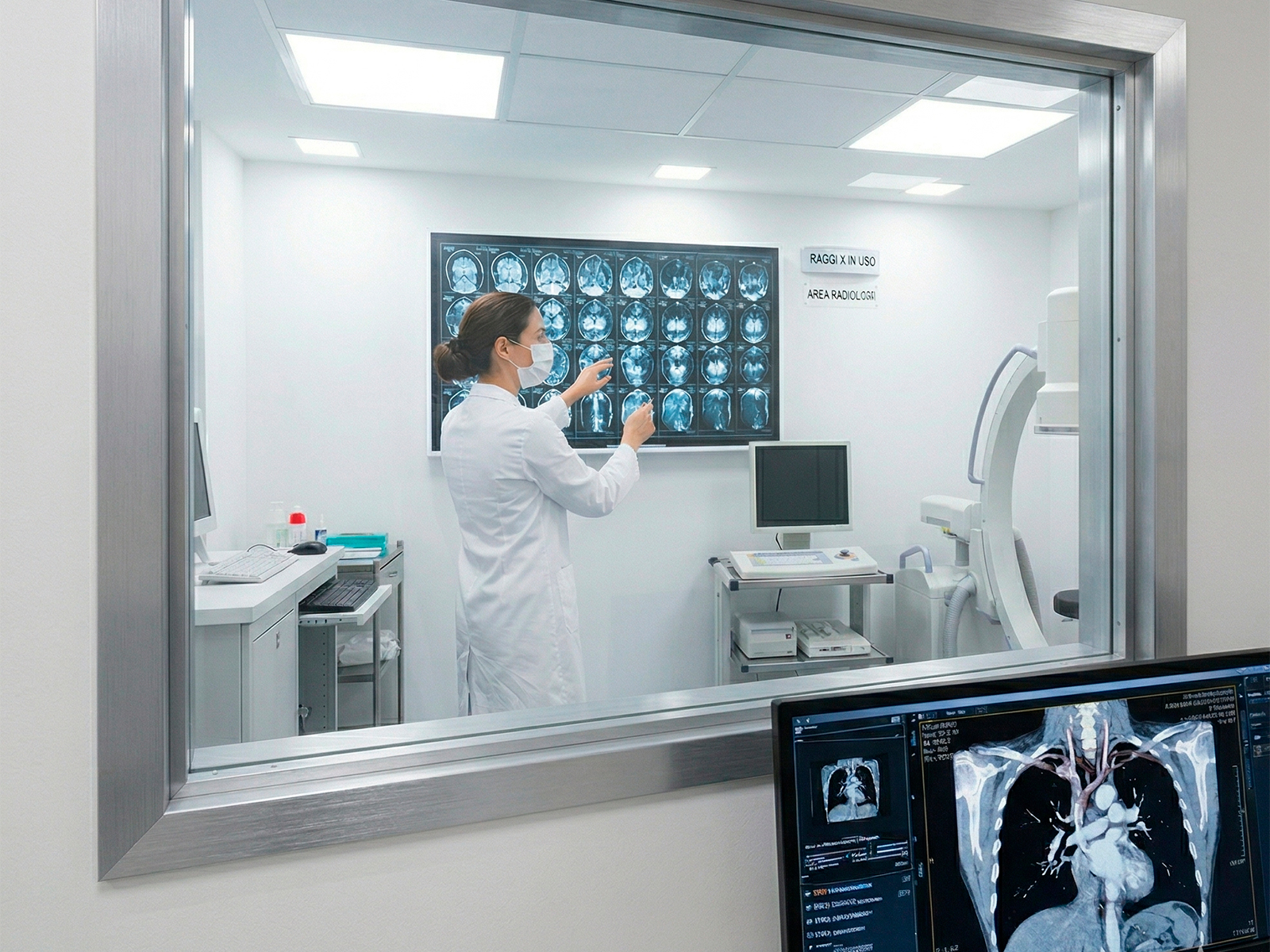

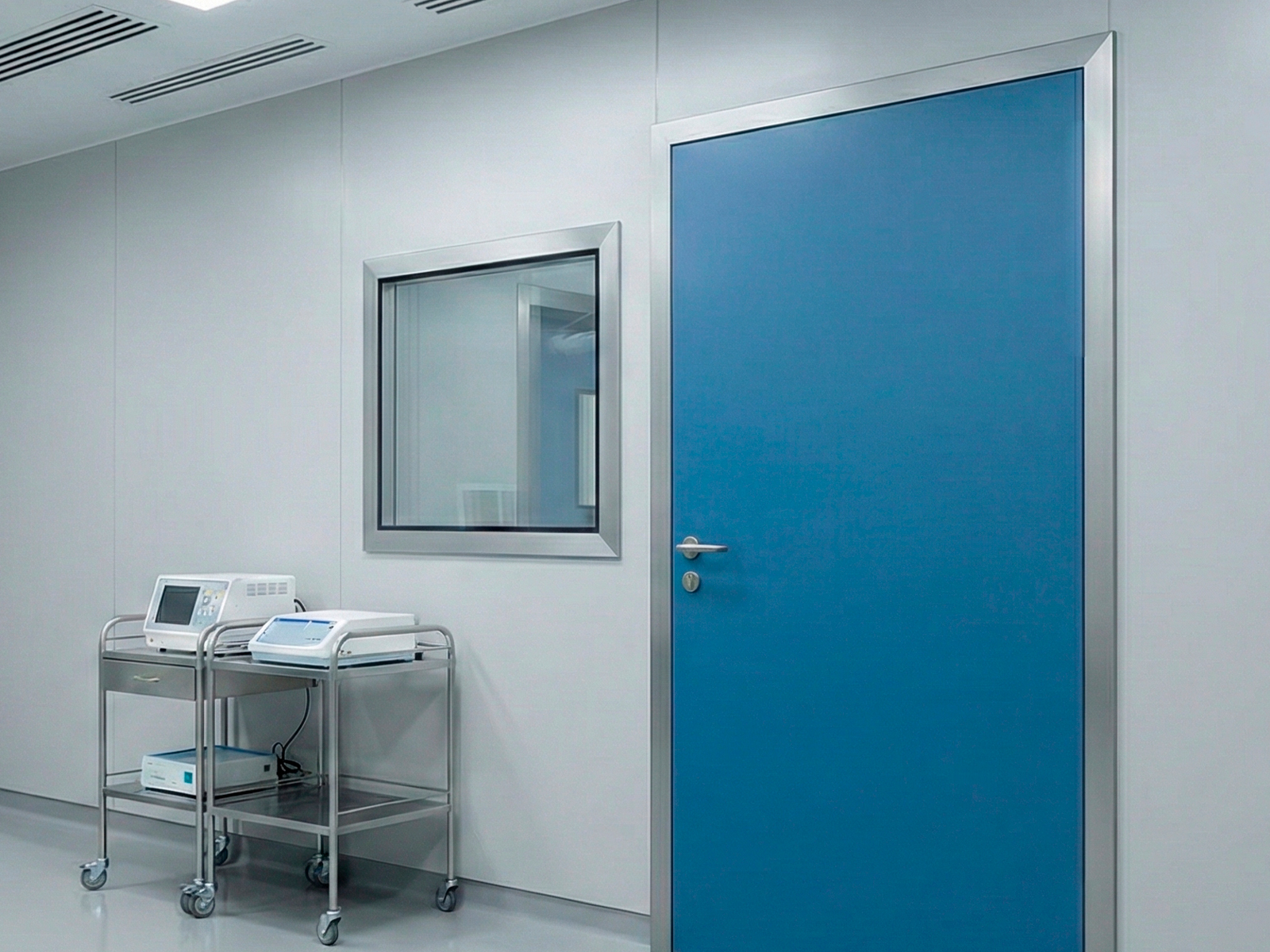

183VX+114ALL Visiva Anti X with Frame Aluminum
Description
Visual shielding with high-density leaded glass and frame extruded aluminum.
Lead oxide glass guarantees radiological protection and high optical transparency, allowing safe visual control during the use of X-ray equipment.
The aluminum frame ensures precise installation, stability, and continuous shielding when used in combination with walls, subframes, and shielded doors.
Features
Nominal thickness
15 mm
Radiation protection

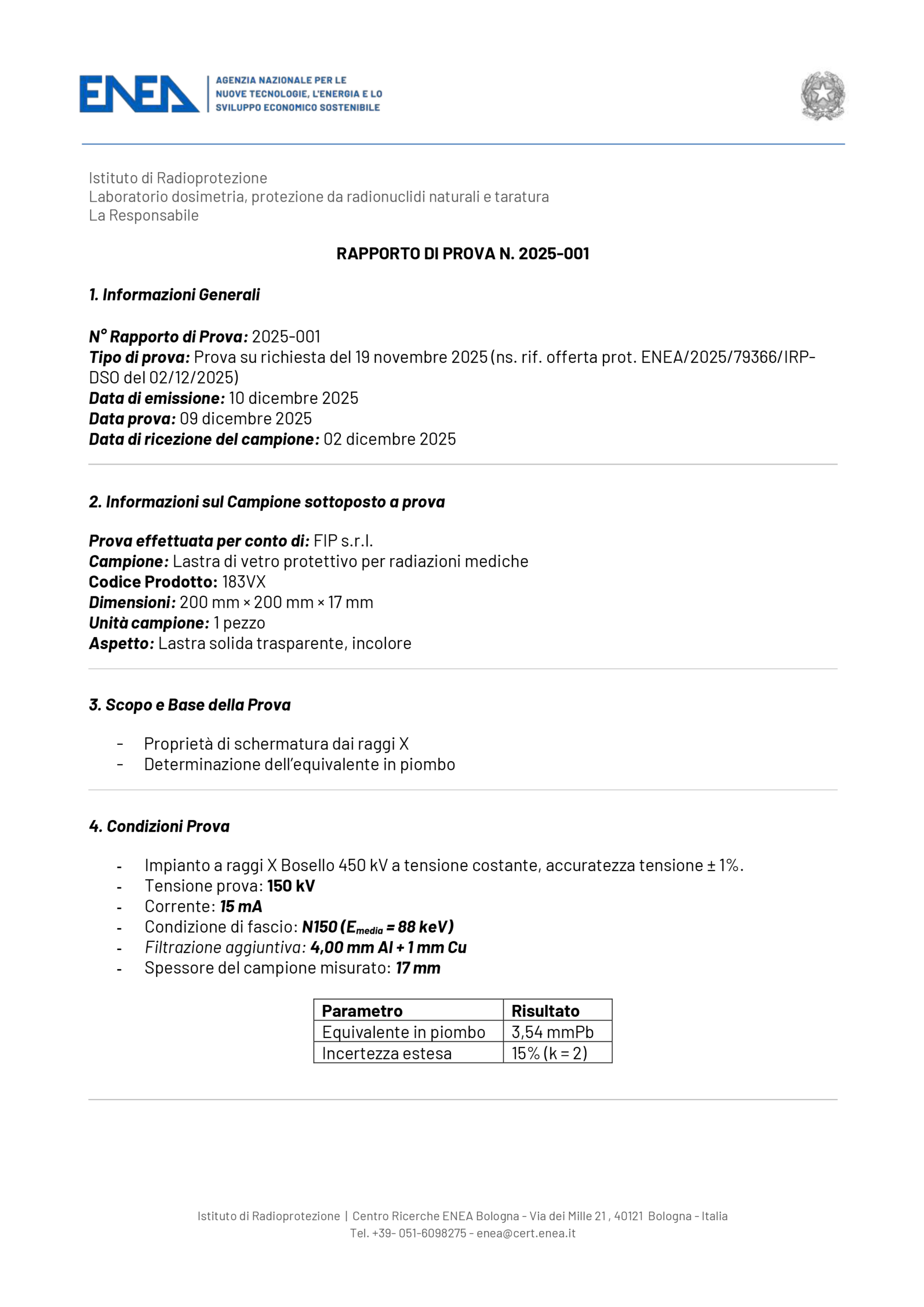

Pb equivalence (X-ray): 3.54 mm Pb
Pb equivalent ($\gamma$-ray): 4.8 mm Pb
Chemical composition
SiO2 37.03 % – vitrifying base
PbOx 59 % – Shielding component
K2O 3.6 % – optical modulator
SB2O3 0.18 % – stabilizer
As2O3 0.19 % – refining / clarifying
Density
4.2 g/3 cm
Refractive index
1,6735
Optical transmittance
86 %
Durability
High chemical stability, excellent scratch resistance and
Yellowing.
Norma
Certified radiation protection according to Directive
2013/59/EURATOM – UNI EN 61331 – CE marking.
Frame
Material
Extruded aluminum, 15/10 alloy thickness.
Structure
Telescopic interlocking between the profiles and the architraves.
Assembly
Mullions and transoms joined by means of aluminum corner brackets.
Notes and recommendations
Installation must be carried out exclusively by qualified personnel.
The joints and gaskets must maintain the
shielding continuity.
Verify that the Pb equivalence complies with the requirements of the medical physicist or qualified expert in radiation protection.
Cleaning with neutral detergents, avoiding abrasives or solvents.
The Visiva Anti-X-Ray – Model 183VX (glass thickness 15 mm) represents a reliable, certified solution compliant with European regulations on radioprotection.
Combines high protection (3.54 mm Pb equivalent), optical transparency, and aesthetic integration with shielded doors and walls.
Certifications
FIP solutions are designed to address specific technical challenges.
For this reason, we invite you to select the certified configuration that best suits your needs
+ Lead inside
Integrated radiation protection
183VX Visiva Anti X with Frame Wood
Description
Privacy screen with high-density leaded glass and a frame wooden frame.
Lead oxide glass guarantees radiological protection and high optical transparency, allowing safe visual control during the use of X-ray equipment.
The frame, made of solid wood and coated with water-repellent HDF, ensures stability, moisture resistance, and proper integration with the masonry.
Features
Nominal thickness
15 mm
Radiation protection
Pb equivalence (X-ray): 3.54 mm Pb
Pb equivalent ($\gamma$-ray): 4.8 mm Pb
Chemical composition
SiO2 37.03 % – vitrifying base
PbOx 59 % – Shielding component
K2O 3.6 % – optical modulator
SB2O3 0.18 % – stabilizer
As2O3 0.19 % – refining / clarifying
Density
4.2 g/3 cm
Refractive index
1,6735
Optical transmittance
86 %
Durability
High chemical stability, excellent scratch resistance and
Yellowing.
Norma
Certified radiation protection according to Directive
2013/59/EURATOM – UNI EN 61331 – CE marking.
Frame
Type
Solid fir body, offering high mechanical strength, elasticity, and the natural flexibility of wood.
Material
Lead sheet cladding (thickness from 1 to 3 mm, upon request).
Notes and recommendations
Installation must be carried out exclusively by qualified personnel.
The joints and gaskets must maintain the
shielding continuity.
Verify that the Pb equivalence complies with the requirements of the medical physicist or qualified expert in radiation protection.
Cleaning with neutral detergents, avoiding abrasives or solvents.
The Anti-X-Ray Visiva – Model 183VX (glass thickness 15 mm) represents a reliable, certified solution compliant with European regulations on radioprotection.
Combines high protection (3.54 mm Pb equivalent), optical transparency, and aesthetic integration with shielded doors and walls.
Certifications
FIP solutions are designed to address specific technical challenges.
For this reason, we invite you to select the certified configuration that best suits your needs
+ Lead inside
Integrated radiation protection

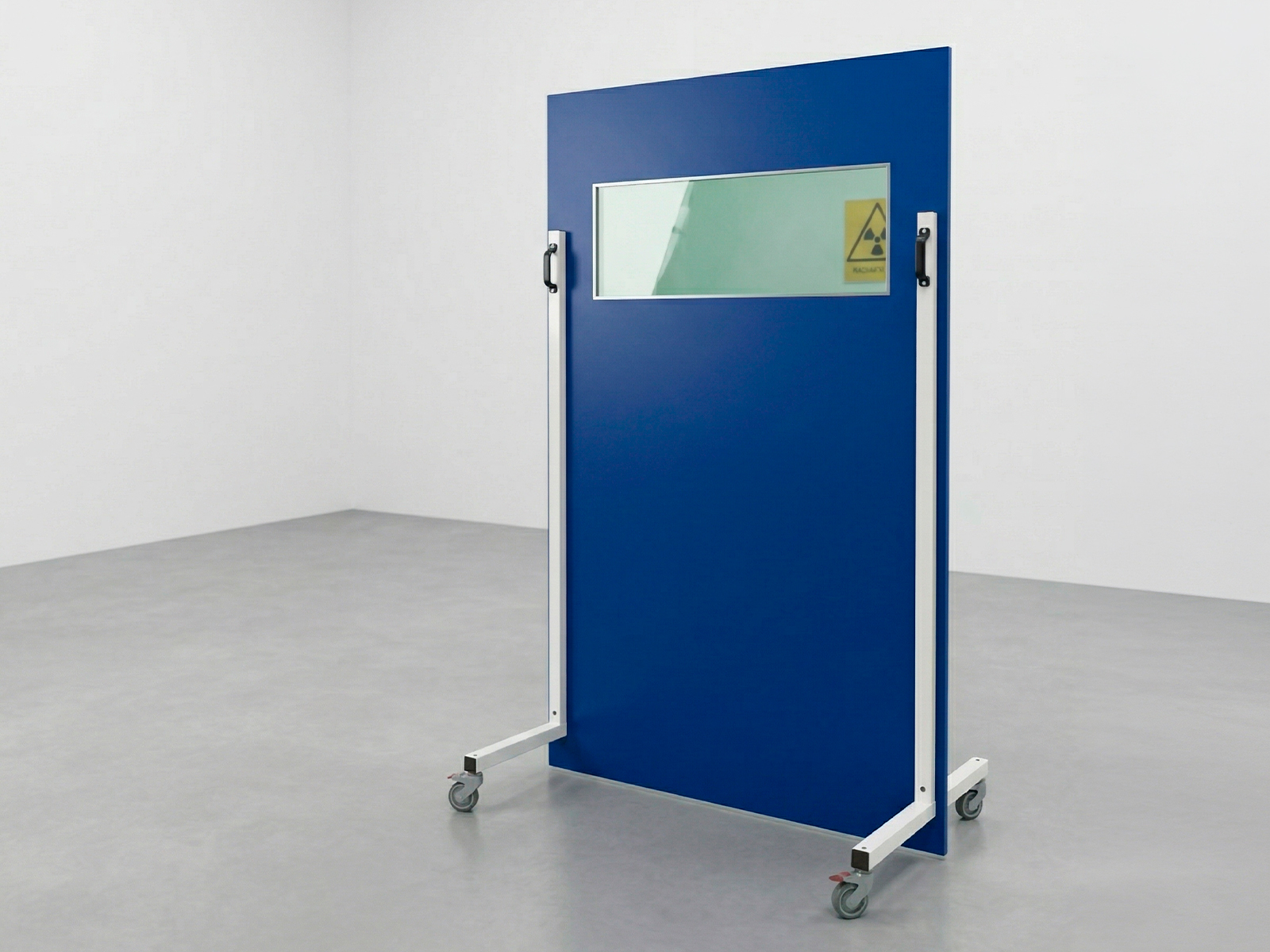

201PM+183VX Visiva Anti X on Wheels
Description
Mobile radiation-protective screen with integrated lead sheet and self-supporting structure on wheels.
It guarantees radiological protection in environments exposed to ionizing radiation, allowing rapid and flexible positioning without masonry work.
The compact structure and coated surfaces ensure strength, durability, and ease of cleaning even in heavy-use environments.

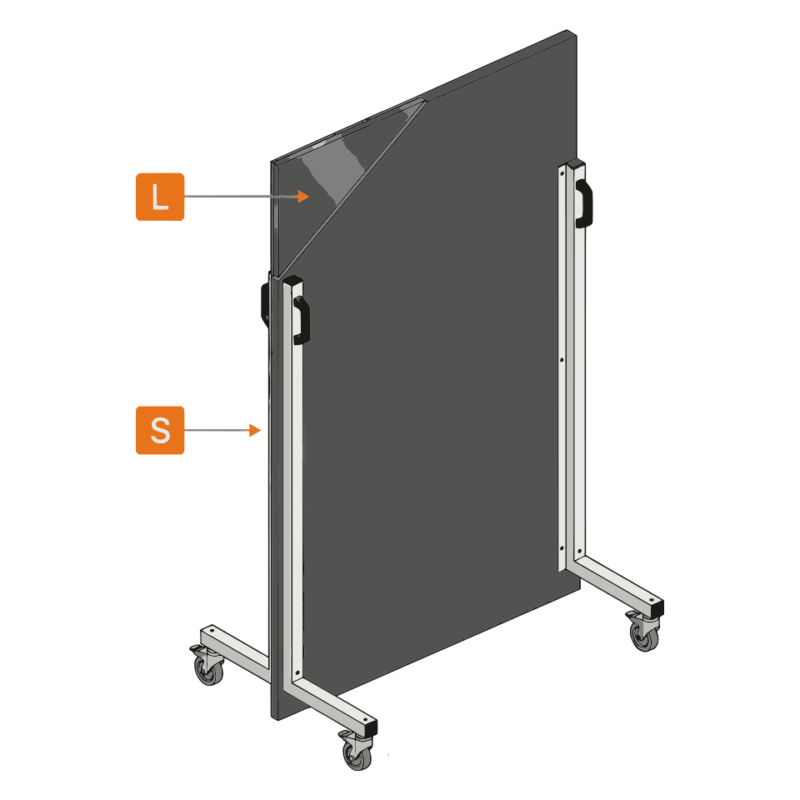

Anti-X shielding sheet
The 1 mm – 2 mm – 3 mm lead sheet core is designed to protect personnel during radiological examinations.
Self-supporting structure
This point highlights the robustness and stability of the white frame.

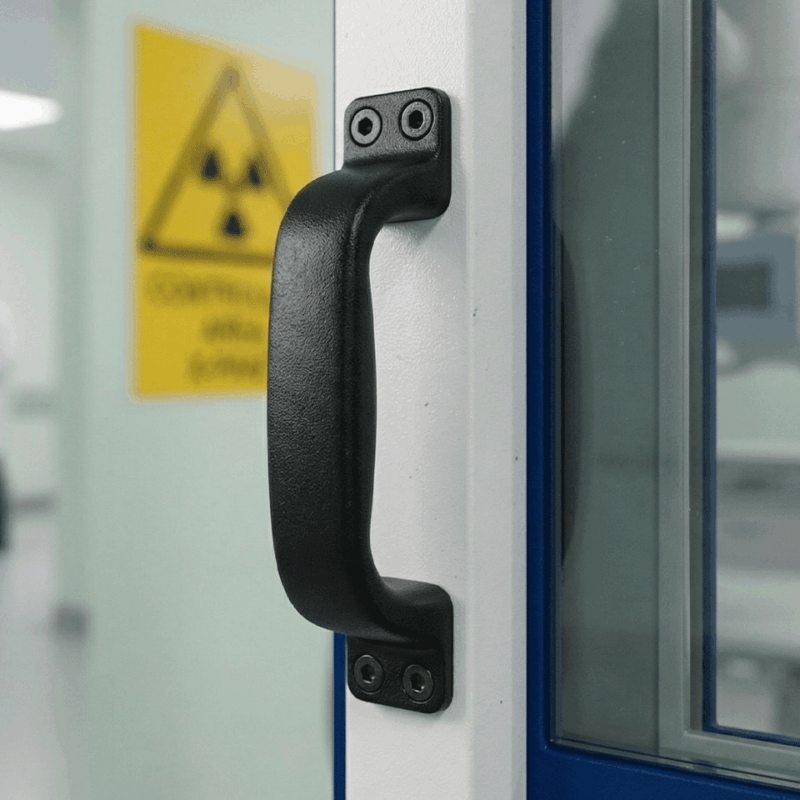

Handling
The bulkhead is equipped with 4 ergonomic handles that
allow movement and positioning
fast and controlled.
Wheels
Wheels
The caster wheels with brake that guarantee
a fluid movement and a secure lock without
need for wall fixings.
Standard Dimensions
Height
1200 mm
Width
800 mm
Panel thickness
45 mm
Possibility to customize the sizes
Weight
~100 kg (varies depending on dimensions)
Visual
Upon request, anti-X-ray shielding can be installed.
Scope of use
Radiology and diagnostic rooms
Medical and dental clinics
Veterinary studies
Technical laboratories
Healthcare and research environments
Certifications
FIP solutions are designed to address specific technical challenges.
For this reason, we invite you to select the certified configuration that best suits your needs
+ Lead inside
Flame-retardant Class 1 upon request
