Art. 141 · Armored vehicles

You choose the design. Even the one that is not in the catalogue.

Q: What is the difference between Class 3 and Class 4?

Four things. The diverters change from double-piston to triple-piston. The leaf reinforcements have a different layout: one vertical omega plus four horizontal ones in Class 3, and two vertical omegas in Class 4. Class 4 adds a security post to protect the lock. And the Class 4 frame can also be adjusted horizontally. Everything else—the lock, peephole, threshold, and dummy frame—is identical.

Q: How do you arrive at a quote?

We need the dimensions of the opening wall opening, the floor level it’s on, and the layout of the home: based on that, we can determine whether it fits one of the three standard sizes or if a custom size is needed, and which class makes sense. If you already have a design in mind—even one not in the catalog—please send it to us. The standard sizes are also listed in the price list on our Porte Italiane store.

Armoured structure Art. 141 in Class 3 or Class 4. On top of it goes whatever design you want: fifteen pantograph designs from the IPL Line, thirteen from the Wood range, the designs from the collections, or your own.

Request a custom quote →

3 and 4burglary resistance classes

28catalogue designs

14wood effect finishes

RALany lacquering

The problem

Safety is not up for discussion. Appearance is, and no one is saying it

The front door is the only one that is looked at from the outside and the inside. Almost all security doors solve the issue of security and give up the rest: a smooth panel, three colors from the catalog, and a thickness that immediately reveals what lies beneath.

The burglar-resistant structure Art. 141 never changes. The panel that goes over it changes — and the choice there is free.

Standard armored door

Security solved, aesthetics suffered. The panel that is there, in the color that is there.

Armored Vehicle FIP, Item No. 141

The same design, with the same style and finish you chose for the rest of the house.

Safety is not up for debate. Looks are, and nobody talks about it — Art. 141LLBO, smooth white laminate

Construction — Art. 141 in RAL 7036 lacquer finish

What is it made of

The fifteen parts that make up an armored vehicle

These are the ones listed in data sheet, Item 141. Safety doesn't lie in the panel—it lies in the frame, the switches, and the upright—that is, in the parts that no one sees.

1 · False frame20/10 galvanized sheet metal, for wall installation, supplied with mounting spacers

2 · Frame fixedTear-resistant, dark brown pre-coated sheet metal, 8 Allen screws for adjustment

3 · LeafGalvanized steel sheet, prepared on both the inside and outside for any type of coating

4 · HingesAdjustable, single inseparable profile, stainless steel pin and ball

5 · Reinforcing OmegaClass 3: one vertical and four horizontal · Class 4: two vertical

6 · Diverter ValvesClass 3: double-piston double-way valve · Class 4: triple-piston valve

7 · LockHigh-security European cylinder with tamper-resistant defender

8 · HandlesFixed knob and handle made of bronzed aluminum

9 · GasketPerimeter trim: draft-proof, dust-proof, and soundproof

10 · Peephole180° Wide-Angle

11 · ThresholdAutomatically operated draft stopper, made of aluminum and rubber

12 · Safety hookA limiter that allows the leaf to open partially

13 · PanelsCladding, smooth, 7 mm thick

14 · Additional sheet metalGalvanized, integrated with leaf — optional

15 · Safety postLock Protection — Class 4

Six registers, one structure

The same front door, six different homes

Six catalogue configurations. The Art. 141 structure below is identical in all six: what changes is the panel design and the upholstery material.

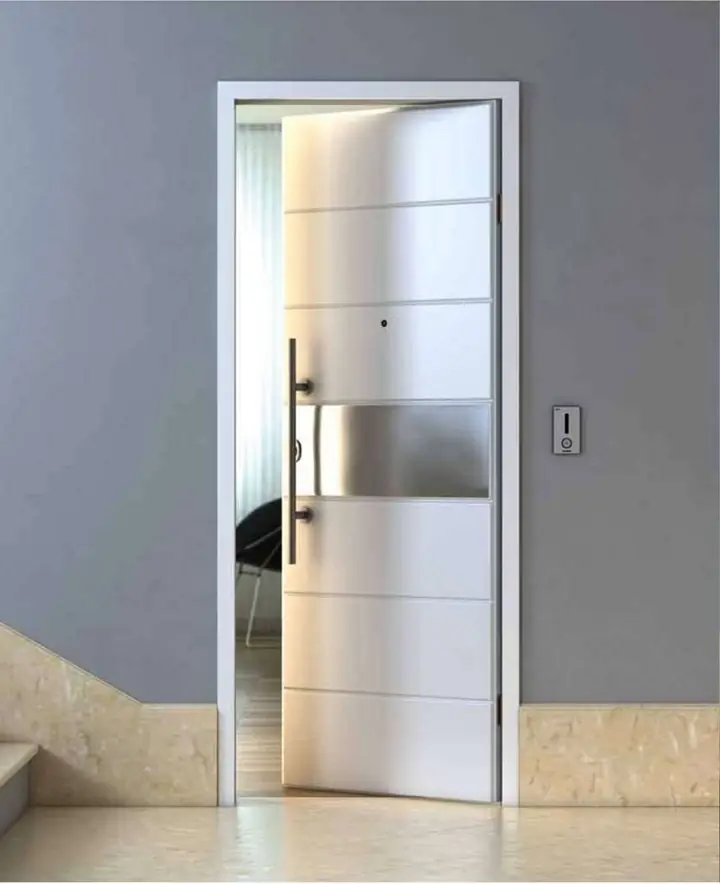

RAL 9010 aluminumArt. 141362LBO+RARB, with stainless steel band — handle 143M70

Wengé WoodArt. 141339W, diagonal pattern — handle 143M

Tanganica Walnut DogatoArt. 141340NTN, vertical slats — 143M handle

Walnut AluminumArt. 141332NTT+RALB, design 332 — handle 143M

Tanganyika Walnut LaminateArt. 141NTN, leaf smooth — handle 143M

National Walnut LaminateArt. 141LNN, leaf smooth — handle 143M

Under the panel

Class 3 or Class 4: the difference, line by line

Not a single comma changes in what you see. Four things change, and it is the exposure level of the home that decides which of the two is needed: Class 3 for apartments and houses in inhabited areas, and Class 4 for isolated villas and more exposed entrances.

	Class 3	Class 4
Closing Diverter Valves	Double two-way switch double piston	Double two-way switch triple piston
Reinforcements for leaf	One vertical omega and four horizontal ones	Vertical omegas
Safety pillar	—	Present, to protect the lock
Adjusting the frame	Vertically	Horizontally and vertically
Fake frame	20/10 galvanized sheet metal with spacers	20/10 galvanized sheet metal with spacers
Lock	European cylinder with security guard	European cylinder with security guard
Peephole	180° Wide-Angle	180° Wide-Angle
Threshold	Automatic aluminum and rubber furniture	Automatic aluminum and rubber furniture
Standard sizes 1 leaf	W 80/85/90 × H 210 clear opening size	W 80/85/90 × H 210 clear opening size

The highlighted lines are the differences between the two classes. Everything else is identical.

Customise

Fifteen drawings ready. And then all the others

The leaf is designed both inside and out to accommodate any type of finish: that’s why, on a FIP armored vehicle, there’s a real choice in terms of aesthetics. This is the IPL Line, the library of pantograph patterns designed specifically for armored vehicles.

IPL Line Drawing Art. 313 — Article 313IPL line

IPL Line Drawing Art. 330 — Art. 330IPL line

IPL Line Drawing Art. 331 — Article 331IPL line

IPL Line Drawing Art. 332 — Art. 332IPL line

IPL Line Drawing Art. 333 — Article 333IPL line

IPL Line Drawing Art. 334 — Article 334IPL line

IPL Line Drawing Art. 335 — Art. 335IPL line

IPL Line Drawing Art. 336 — Article 336IPL line

IPL Line Drawing Art. 337 — Article 337IPL line

IPL Line Design Art. 338 — Article 338IPL line

IPL Line Drawing Art. 341 — Article 341IPL line

IPL Line Drawing Art. 342 — Article 342IPL line

IPL Line Drawing Art. 343 — Art. 343IPL line

IPL Line Drawing Art. 344 — Article 344IPL line

IPL Line Drawing Art. 345 — Article 345IPL line

And then all the others

The interior door designs, on the entrance door

The thirteen designs of the Wood range — 2 Riquadri, 4 Riquadri, Cornes, Geometrica, Horizontal, Linee, Lines, Modern, Mondrian, Plissè, Rettangoli, Stripes, Vertical — and the designs of the five Porte dal Mondo collections are added to the IPL Line. And if the design you have in mind is in neither of the two catalogues, it can be customized: upon request, the door can be made with any design of your choice.

Wood effect

Fourteen laminate finishes

These are the same finishes as the laminate interior doors: the entrance and the doors of the house can have the exact same wood.

Security door in White Laminate finish — White laminate

Security door in White Matrix finish — Bianco Matrix

Security door with cherry finish — Cherry tree

Security door with National Walnut finish — National walnut

Security door with Horizontal Walnut finish — Horizontal Niche

Security door in Natural Tanganyika Walnut finish — Natural Tanganyika Walnut

Security door in Grey Elm finish — Grey Elm

Security door in Taupe Rosewood finish — Palissandro Tortora

Security door in White Rosewood finish — Palissandro White

Security door in Gray Oak finish — Gray Oak

Security door with horizontal oak finish — Horizontal Oak

Security door with Tranchè finish — Tranche

Security door with grooved stained walnut finish — Stained Walnut Headboard

Lacquered

Any RAL color

If the project calls for a color instead of wood, the door is painted in the RAL shade of your choice. These are just a few examples.

RAL 9010

RAL 7036

RAL 6005

RAL 9005

RAL 3005

RAL 5011

RAL 8001

RAL 7032

Video color reproduction is approximate: colors should be chosen from the RAL chart.

Measurements and installation

The standard measurements, and the non-standard ones

Three clear lights, a height, and custom production for everything else.

The opening wall is measuredSpace is needed for the frame: maximum dimensions L 93/98/103 × H 217 cm.

The passageway light turns onThe one that remains is W 80/85/90 × H 210 cm. If that's not enough, we go custom-made.

Design and finish are chosenIPL Line, Wood range, collections or custom design; wood-effect laminate or RAL lacquered.

The fake frame is being installed20/10 galvanized sheet metal with spacers, installed before finishing work.

It is assembled and adjustedEight Allen screws on the frame and hinges that can be adjusted in all directions: the alignment is calibrated on site.

Measurement chart — Standard measurements are at leaf. Outside these measurements, the signal is detected at opening.

Standard clear openingW 80 · 85 · 90 × H 210 cm

Maximum footprint frameW 93 · 98 · 103 × H 217 cm

OversizedAvailable

Catalogue designs15 IPL lines + 13 wood range, plus the collection drawings

Custom designsUpon request, any custom design of your choice

OriginEntirely Italian production

Two roads

Custom-made, or ready-made

The custom project

Beyond the three standard lights, with the design of your choice — even one not in the catalogue. The complete Class 3 and Class 4 technical data sheets can be downloaded from the download area.

Datasheets Catalogues

Standard measurements, online

The three standard lights are ready and available for immediate purchase on our store, Porte Italiane, in the finishes listed in the catalogue.

Go to Porte Italiane →

Isn't this your requirement?

Three close solutions

The front door takes care of the entrance. Inside the house, the problem is almost always a different one.

For interior doorsFilomuro (flush-to-wall)If you've chosen a coordinated entryway, carry that continuity inside: a retractable frame cabinet in the same shade as the wall. If you're looking for durabilityLaminato HDF (HDF laminate)For transitional rooms, you need a door that can withstand daily use, not just one that looks good. If you want to coordinate everythingDoors from the WorldFive routed collections: the entrance finish can be repeated throughout the home.

Questions

The ones who actually answer the phone

What is the difference between Class 3 and Class 4?

Four things. The derailleurs switch from double to triple piston. The leaf reinforcement pattern changes: one vertical omega plus four horizontal omegas in Class 3, two vertical omegas in Class 4. Class 4 adds a security post for lock protection. And the frame on Class 4 is also adjustable horizontally. Everything else—the lock, peephole, threshold, and dummy frame—is identical.

What are the standard measurements?

Clear passage width L 80, 85, or 90 × H 210 cm, with maximum overall dimensions for frame of L 93, 98, or 103 × H 217 cm, for a leaf. For dimensions outside these ranges, the product is manufactured based on the measured opening dimensions.

Can I have the same design for the interior doors?

Yes, and that’s why a FIP armored door makes sense within a FIP project. In addition to the fifteen designs from the IPL Line, you can choose from the thirteen in the Legno range and the designs from the five “Porte dal Mondo” collections. And upon request, the door can be customized with any design of your choice: if you have your own, just send it to us.

Can I have the same finish as the interior doors?

Yes. The fourteen wood-effect finishes of the door are the same as the laminate of the interior doors, so the entrance and the interior doors of the house can have the exact same wood. Alternatively, the door can be lacquered in any RAL color.

How do you arrive at a quote?

We need the dimensions of the opening wall unit, the floor it’s located on, and the layout of your home: based on that, we can determine whether it fits one of the three standard sizes or if a custom size is needed, and which class makes sense. If you already have a design in mind—even one not in the catalogue—please send it to us. The standard sizes are also listed in our store’s price list. Italian Doors.

Let's talk about it

Send us the measurements and the design you have in mind

Write in the message the width, height and thickness of the wall, the floor it is on, and, if you have it, the design you have in mind. With this information, we can tell you whether you fall into one of the three standard sizes or if a custom size is needed, which class makes sense, and how much it costs. If the design is not among those in the catalogue, you can attach a photo of it below.
